AUTHOR Bicycle CA 66 2013
  » Bicycles » road » bike models

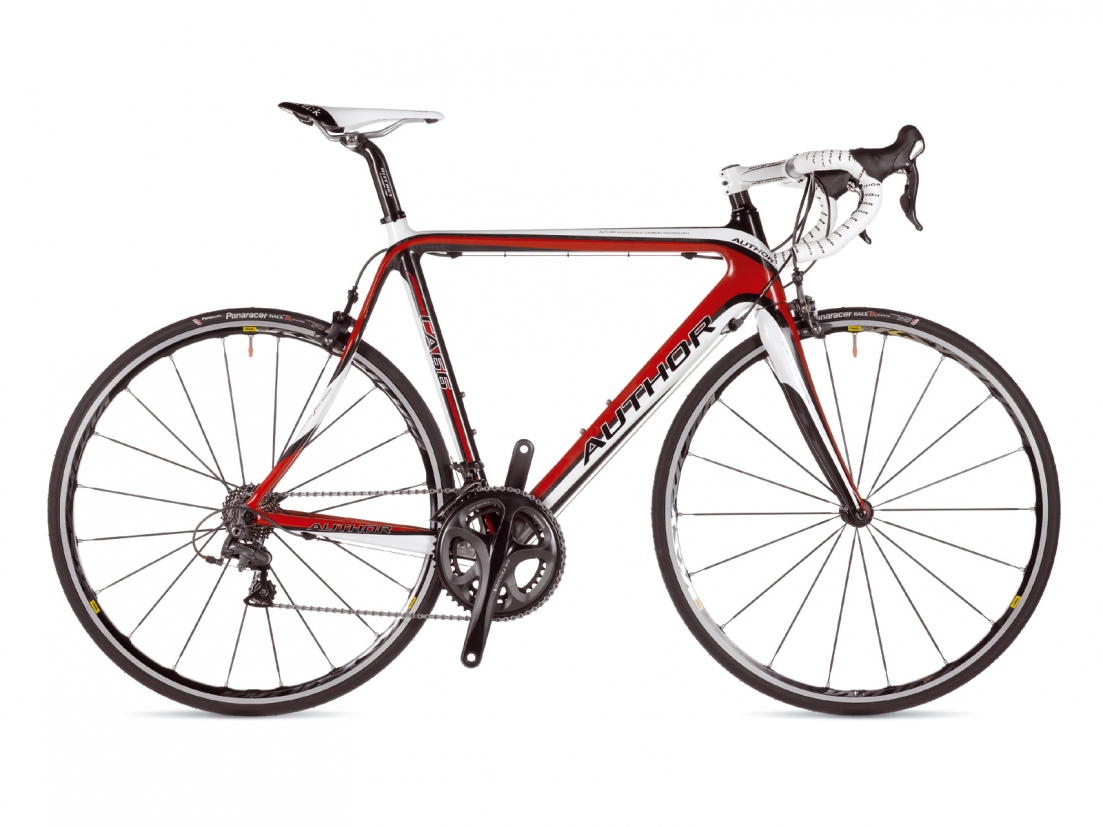

AUTHOR CA 66 2013Archivní model 2013

SOLD OUT
other models
Interested in other model`s year?

Technical specification

Size48, 50, 52, 54, 56, 58 cm
FrameAUTHOR B carbon monocoque
Front forkAUTHOR carbon monocoque
Head partsFSA Orbit C-40 1.5" tapered
Chain WheelSHIMANO Ultegra 53-39 teeth 170 / 172.5 / 175 mm cranks
BBPartsSHIMANO Ultegra BB unit
Front derailleurSHIMANO Ultegra (34.9)
Rear derailleurSHIMANO Ultegra
ShiftersSHIMANO Ultegra (20)
Free wheelSHIMANO CS-6700 12-25 (10)
ChainSHIMANO 6701
HubsMAVIC Ksyrium Elite Wheel Set 18 / 20 holes
BrakesSHIMANO Ultegra
Brakes leversSHIMANO Ultegra
RimsMAVIC Ksyrium Elite Wheel Set 18 / 20 holes
SpokesMAVIC Ksyrium Elite
TiresPANARACER Race Type A Kevlar 700 x 23c
HandlebarRITCHEY Pro Road 420 / 440 mm
StemRITCHEY WCS C-260
Seat postRITCHEY WCS 1B Carbon Road (31.6)
Seat clampAUTHOR (34.9)
SaddleFIZIK Antares
Speed20
Weight7,3 Kg / 54 cm

Geometry and sizes

Size 48 50 52 54 56 58
Min. figure [cm] 154 160 168 176 186 193
Max. figure [cm] 162 170 178 188 195 202
S/T c-t [mm] 520 540 560 580 600 620
S/T c-c [mm] 480 500 520 540 560 580
T/T h [mm] 0 0 0 0 0 0
T/T a [mm] 543 548 563 573 584 590
H/T [mm] 110 120 135 155 175 195
C/S [mm] 410 410 410 410 410 410
W/B [mm] 977 979 992 995 1005 1011
S/T ang. [°] 73 73.3 73.4 73 73 73
H/T ang. [°] 73.3 73.3 73.4 74 74 74
F/L [mm] 365 365 365 365 365 365
B/B drop [mm] 67 67 67 64 64 64
B/B width [mm] 0 0 0 0 0 0
Reach [mm] 0 0 0 0 0 0
Stack [mm] 0 0 0 0 0 0
F/R [mm] 43 43 43 43 43 43
Handlebars [mm] 0 0 0 0 0 0
Stem [mm] 0 0 0 0 0 0
Cranks [mm] 0 0 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR CA 66 2013

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
