AUTHOR A-RAY 3.0 2011
  » Bicycles » mountain bike

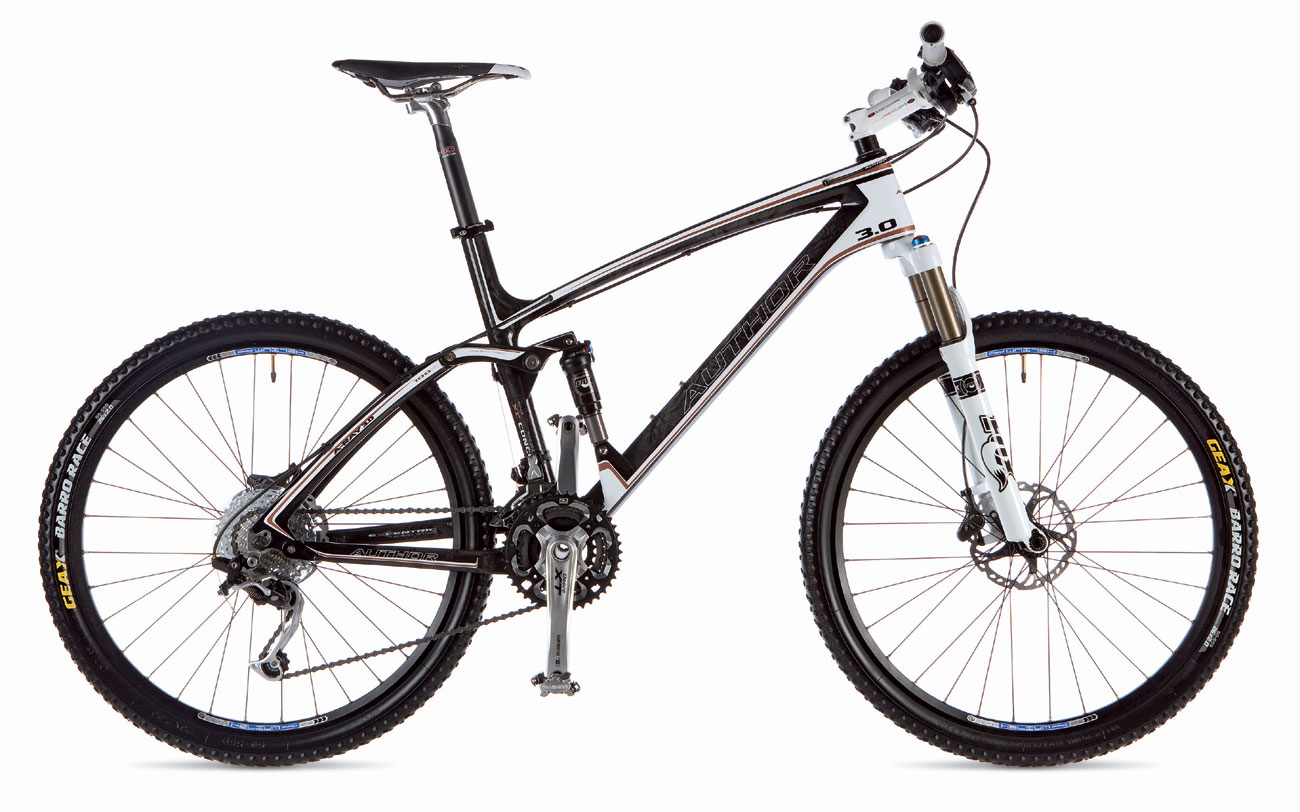

AUTHOR Bicycle A-Ray 3.0 2011Archivní model 2011

SOLD OUT
Interested in other model`s year?

Technical specification

Size17", 19", 21"
FrameAUTHOR carbon monocoque, suspension
Shockeroil-air shocker FOX Float RL lock out 165 / 38 mm (rear travel 100 mm)
Front forkFOX F100RL OB air, lock out 15 mm thru axle 1.5" taper steerer (100 mm)
Head partsFSA Orbit C-40 1.5" taper
Chain WheelSHIMANO XT-10 42-32-24 170 / 175 mm cranks
BBPartsSHIMANO XT-10 BB unit
Front derailleurSHIMANO XT (34.9)
Rear derailleurSHIMANO XT
ShiftersSHIMANO XT (30)
Free wheelSHIMANO M771-10 11-36 (10)
ChainSHIMANO HG-74
HubsShimano XT disc 15 mm thru axle 32 holes
BrakesSHIMANO XT disc hydraulic (6" rotors)
Brakes leversSHIMANO XT
RimsAUTHOR Helium Pro 32 holes
Spokesblack stainless steel 2.2 mm triple butted
TiresGEAX Barro Race Kevlar 26" x 2.00"
PedalsSHIMANO M540 clipless
HandlebarEASTON M-Lite SL karbon 20 mm 31.8 mm
GripsAUTHOR GripLock
StemEASTON EA90
Seat postEASTON EC 70 carbon (31.6)
Seat clampAUTHOR (34.9)
SaddleFIZIK Tundra II kium
Speed30
Weight11.1 kg / 19"
