  » Bicycles » gravel » bike models

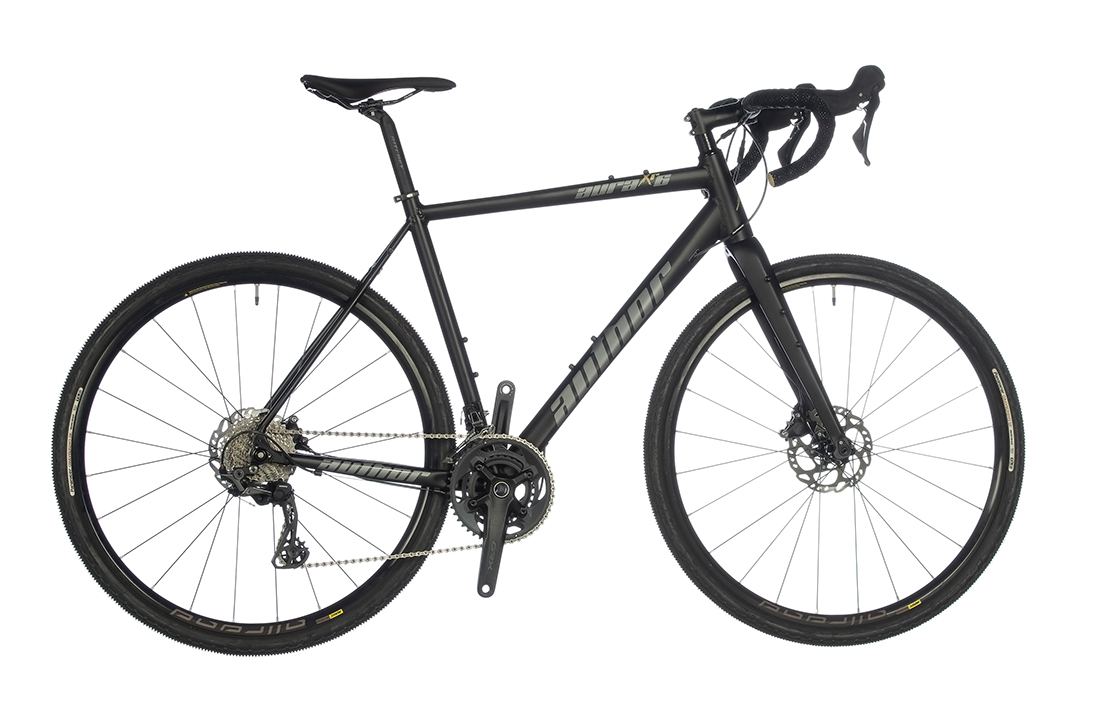

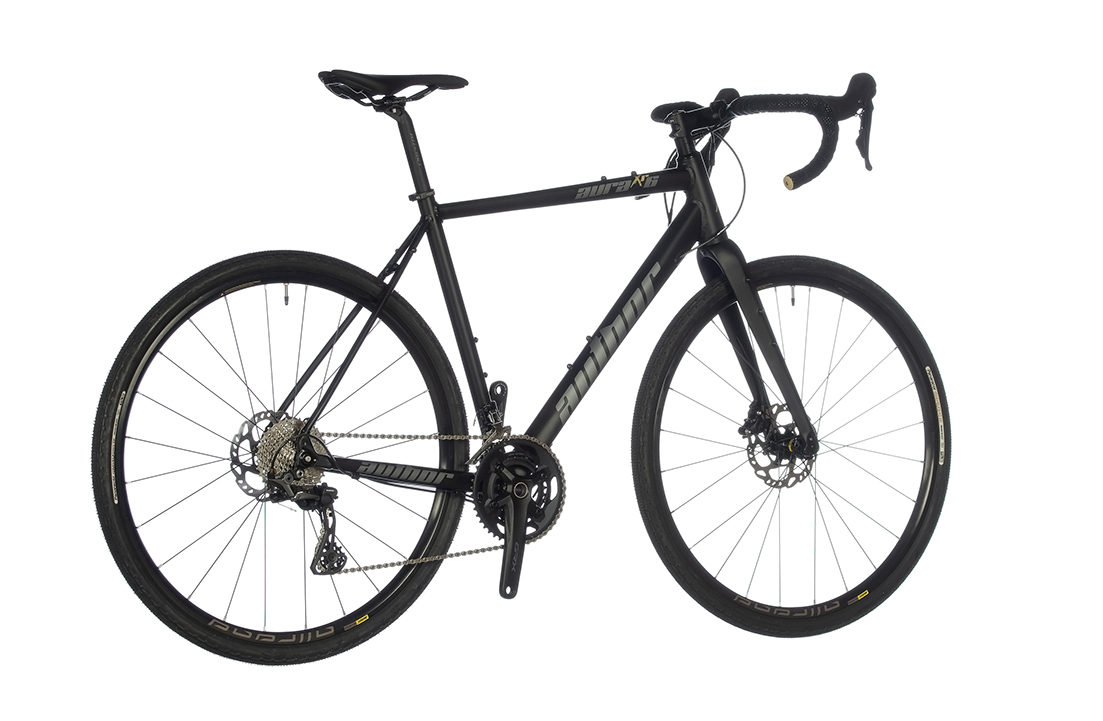

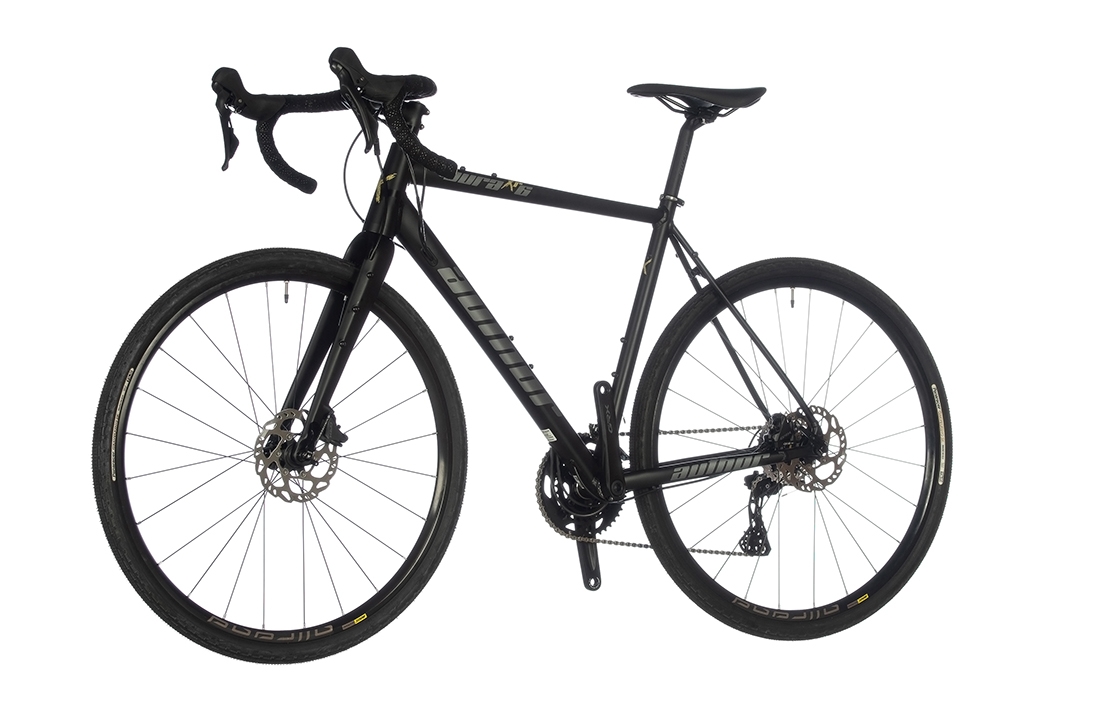

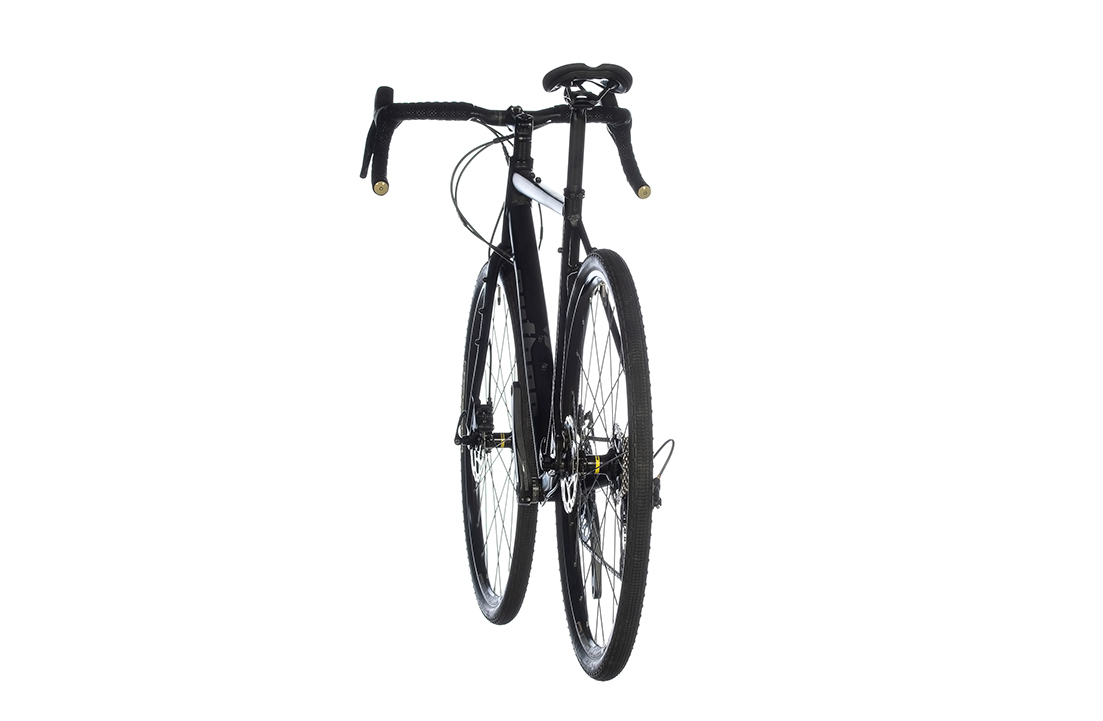

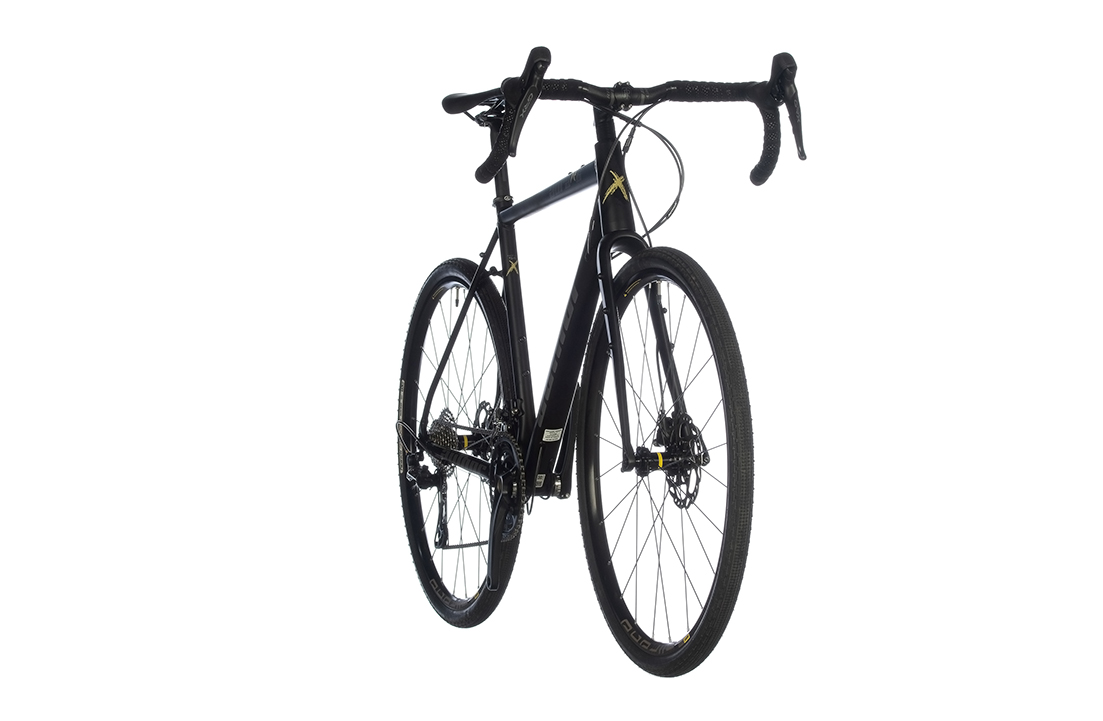

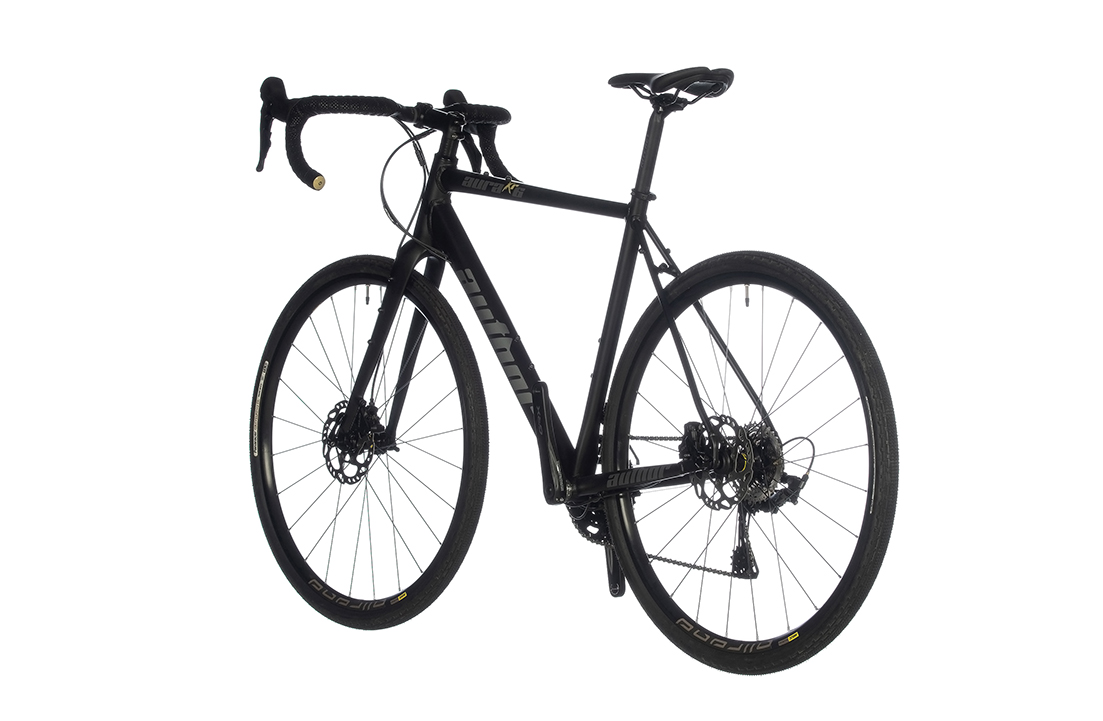

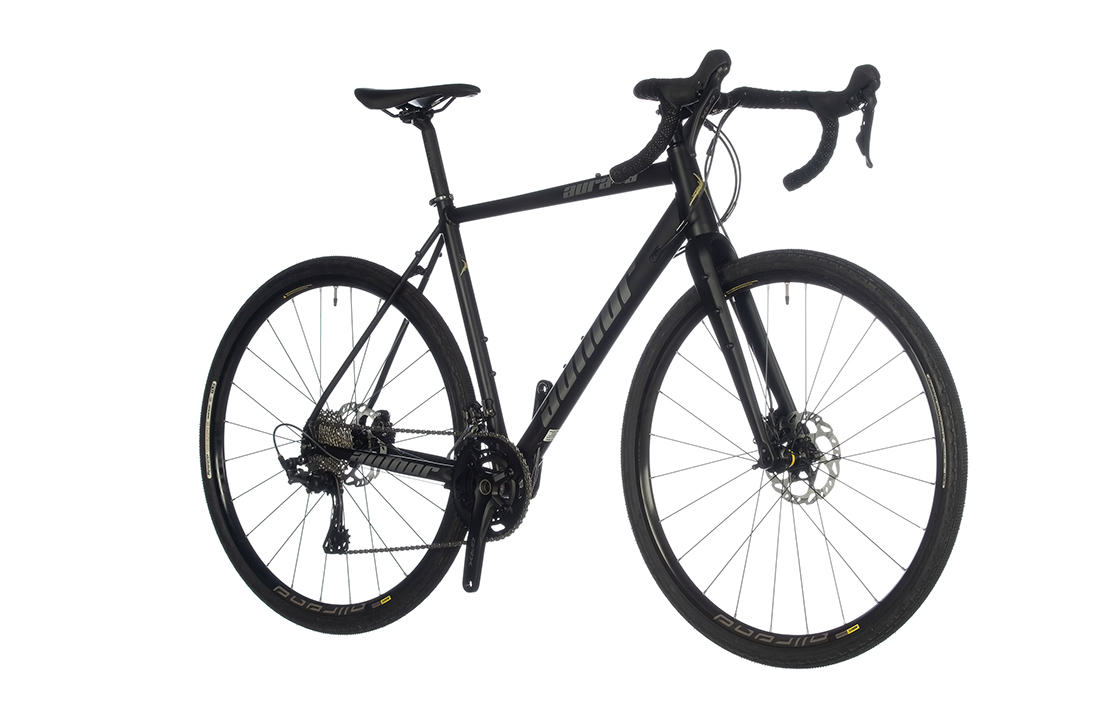

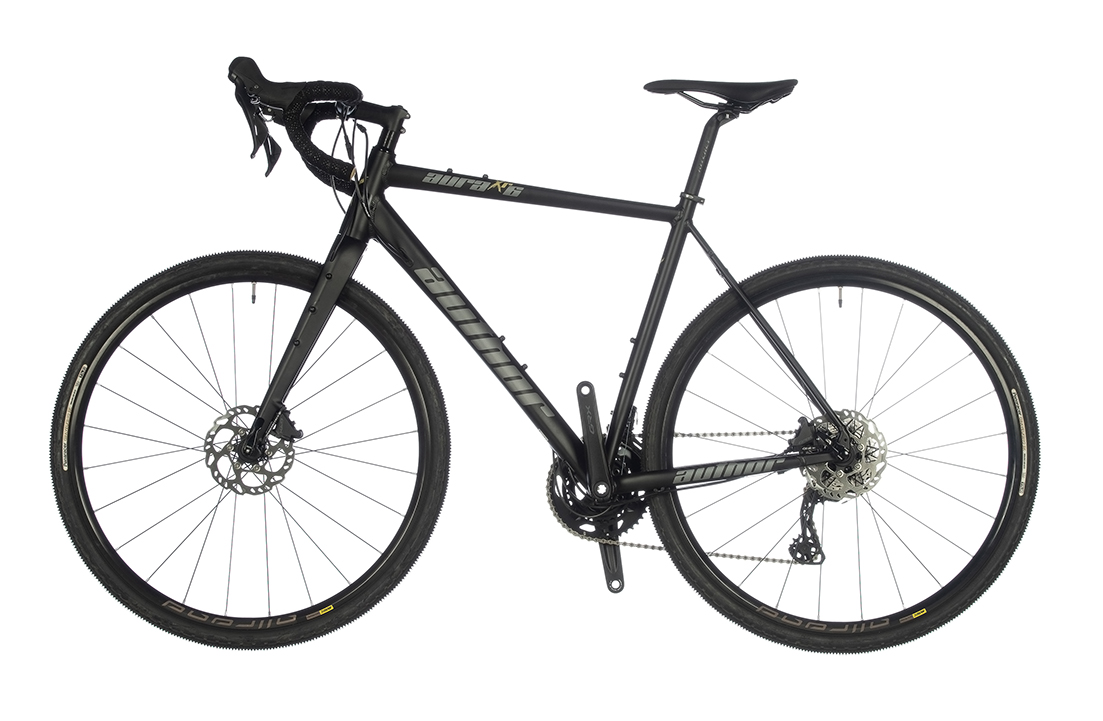

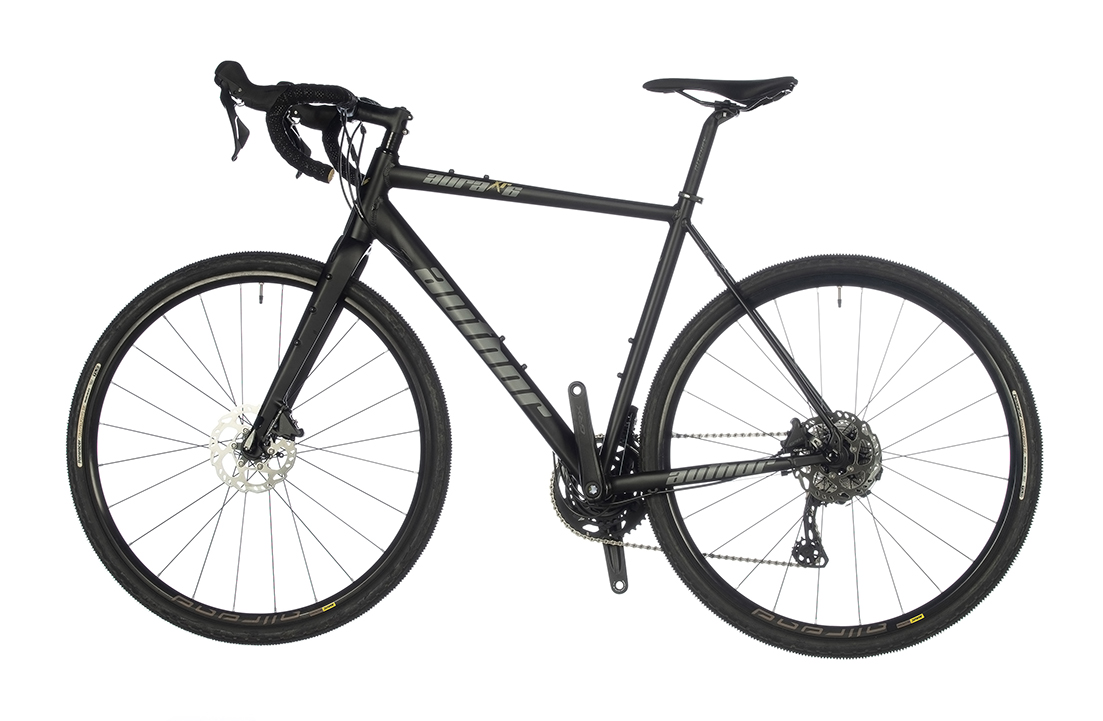

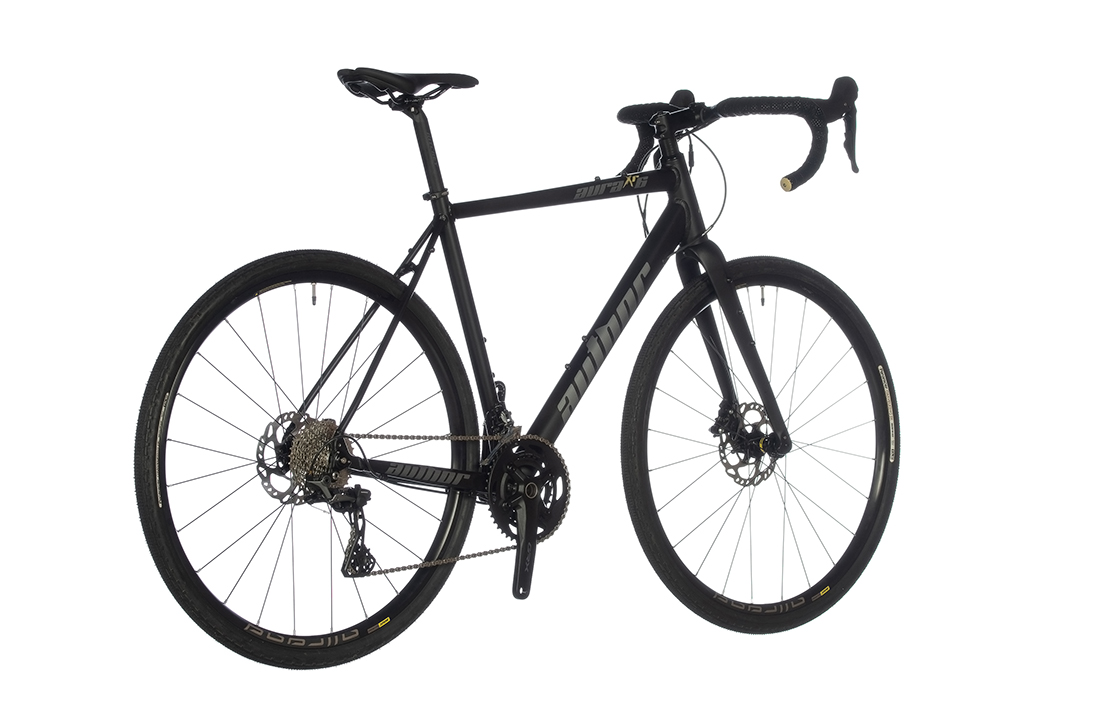

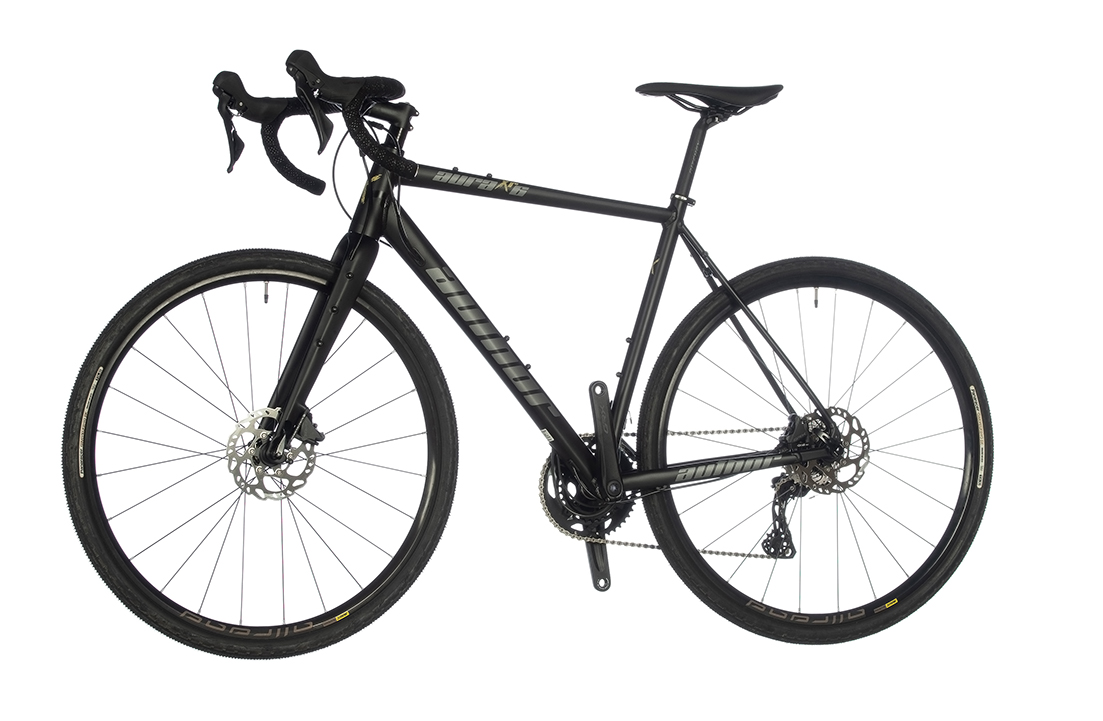

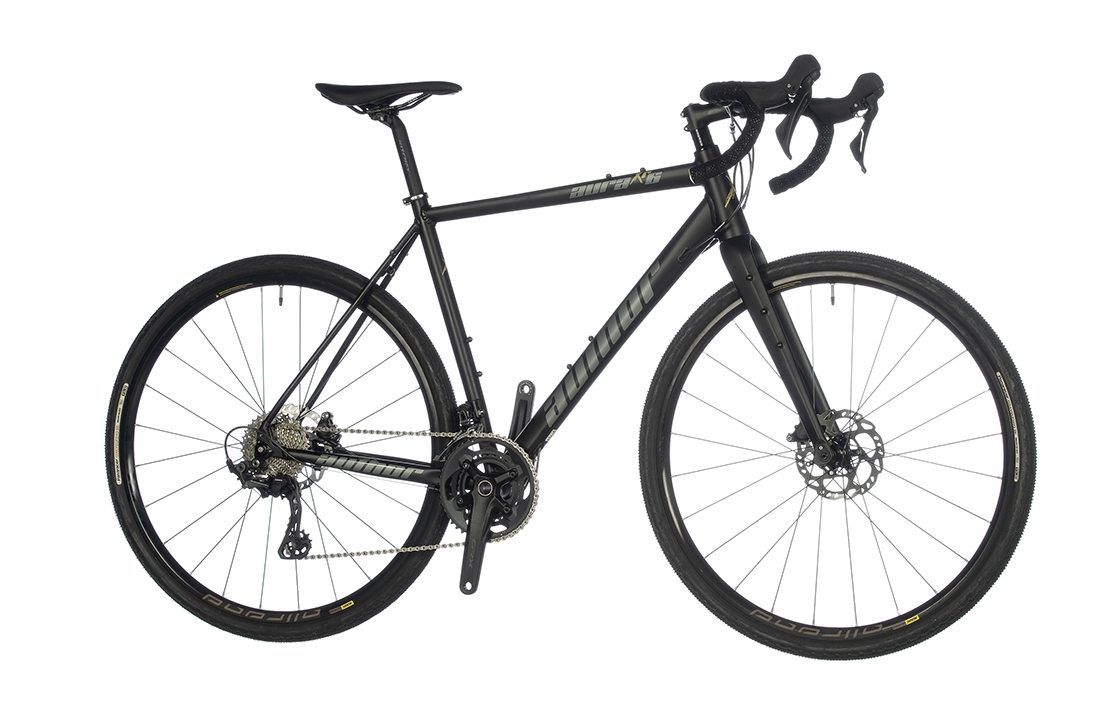

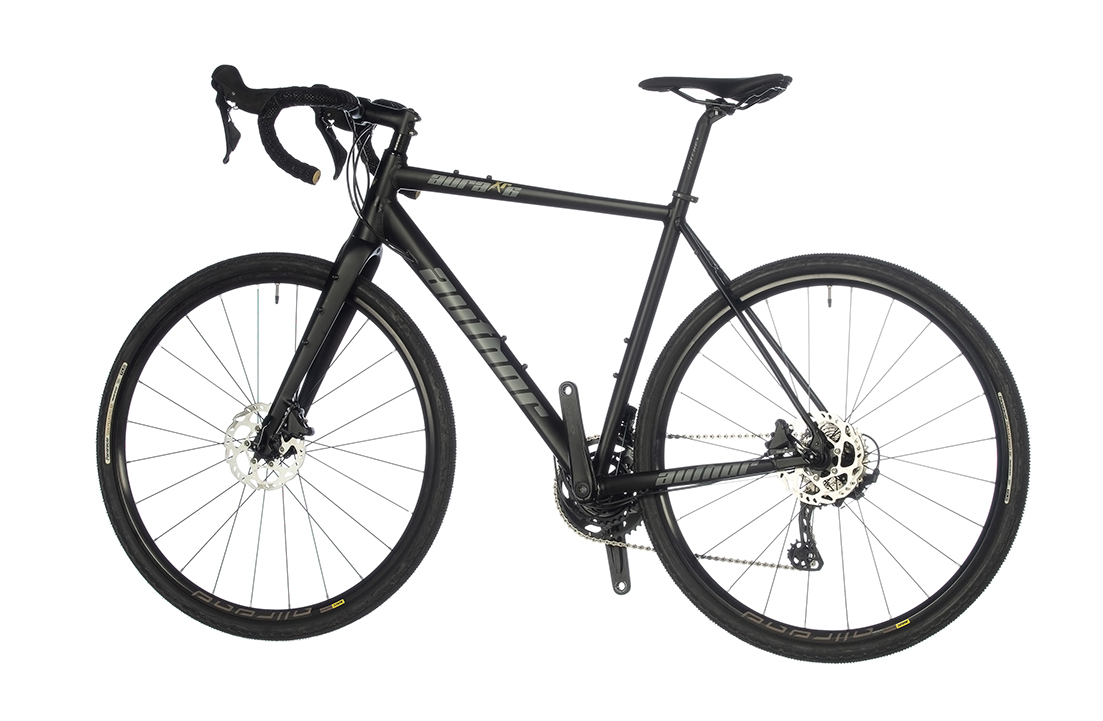

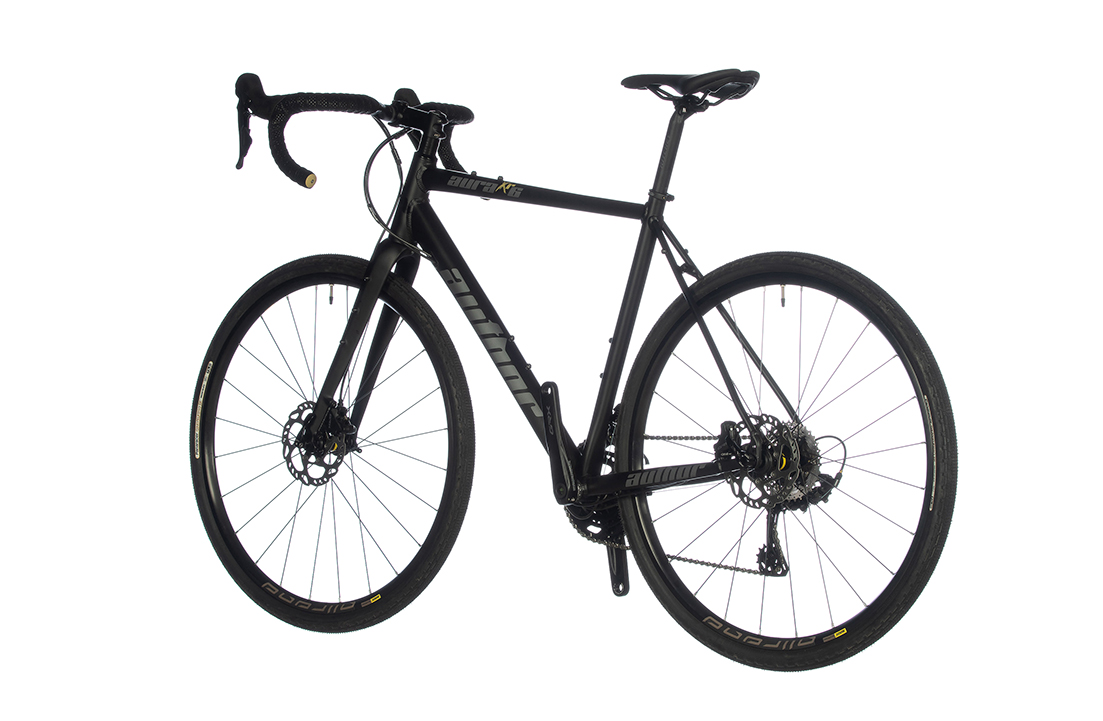

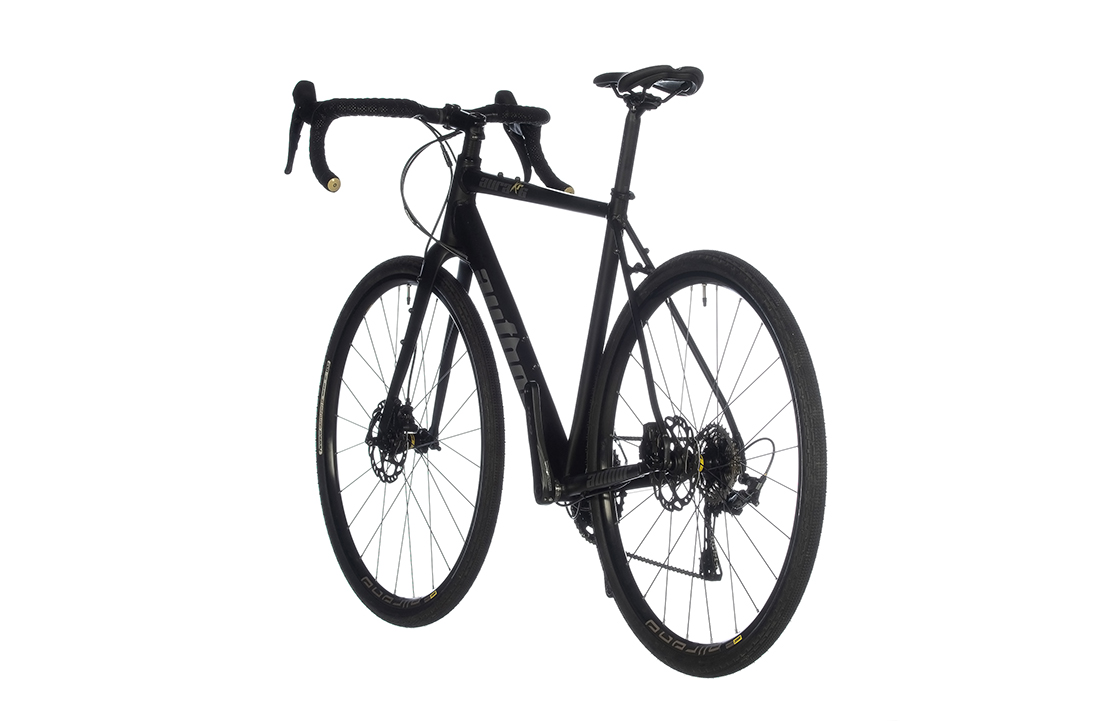

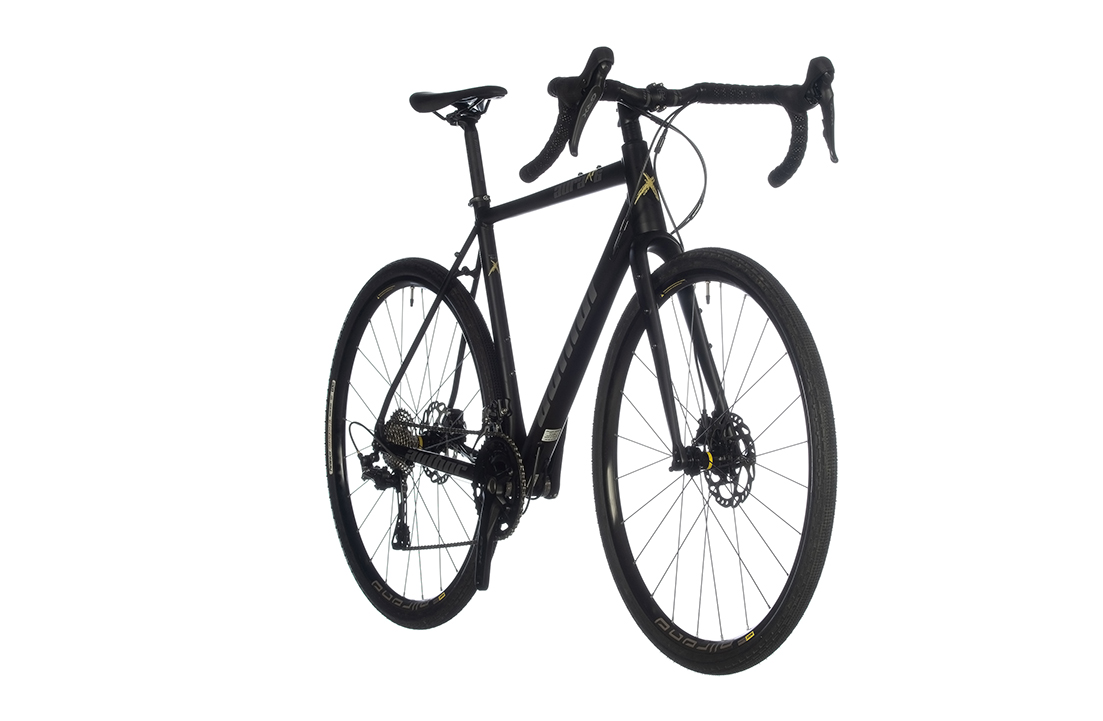

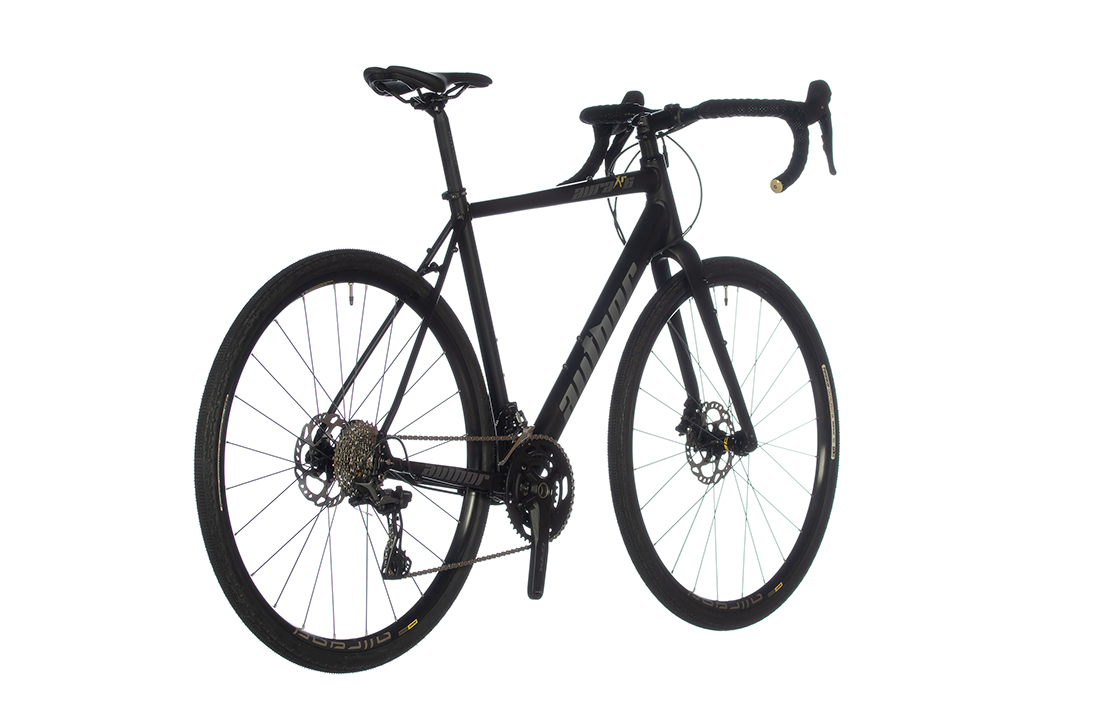

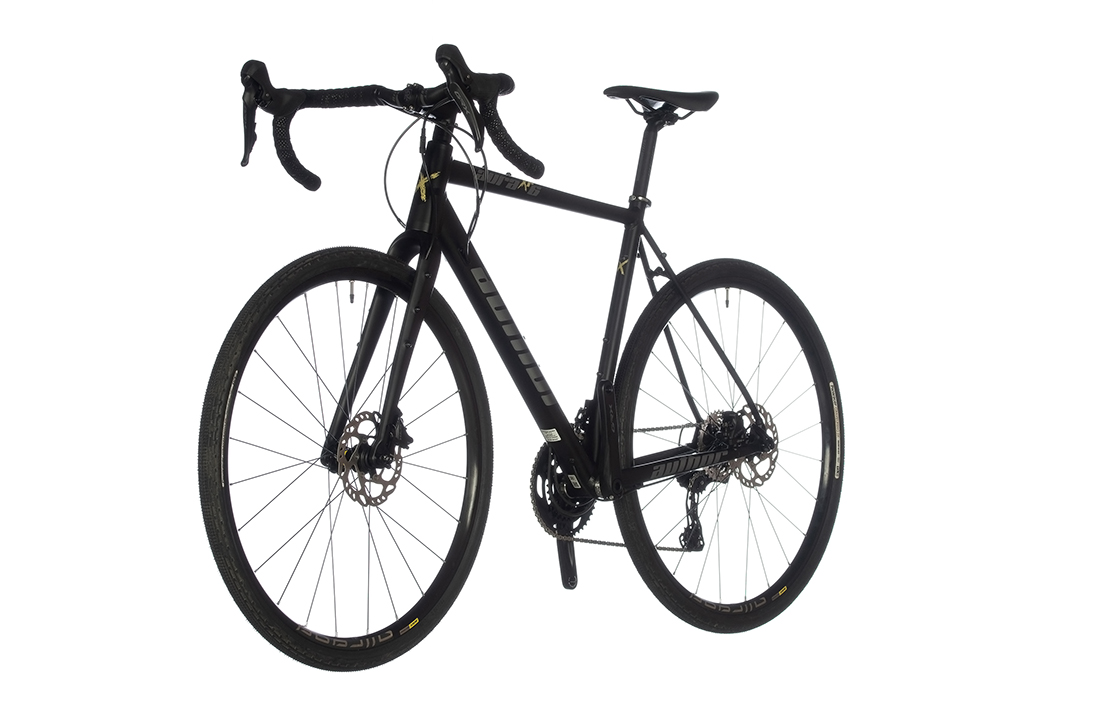

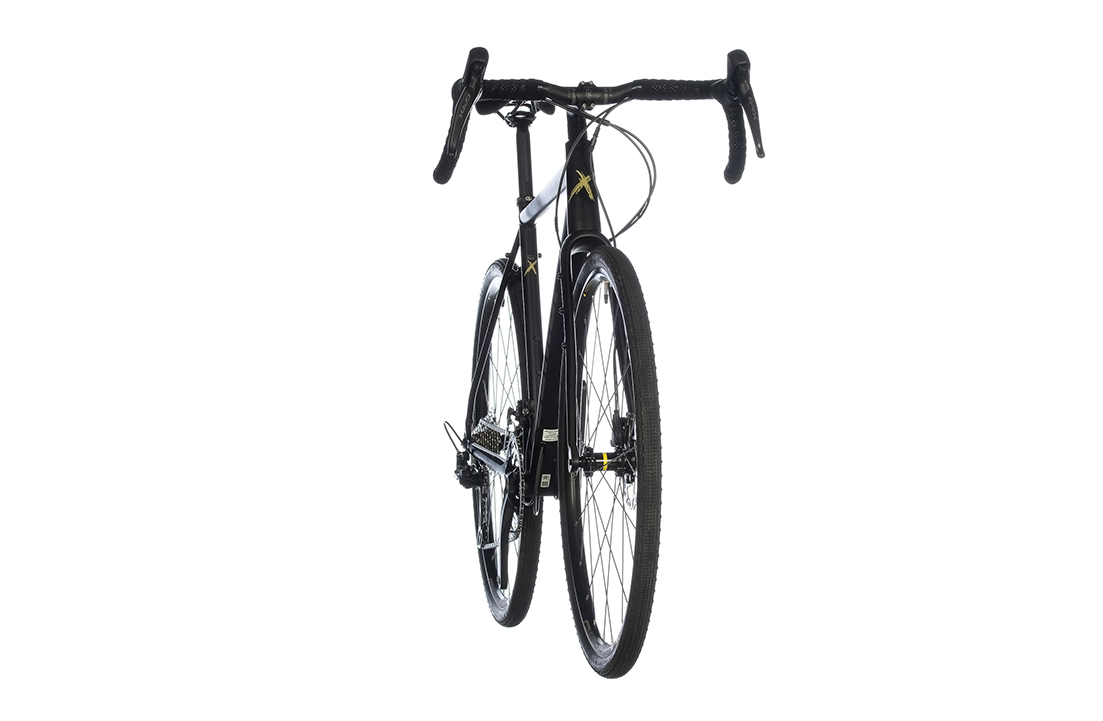

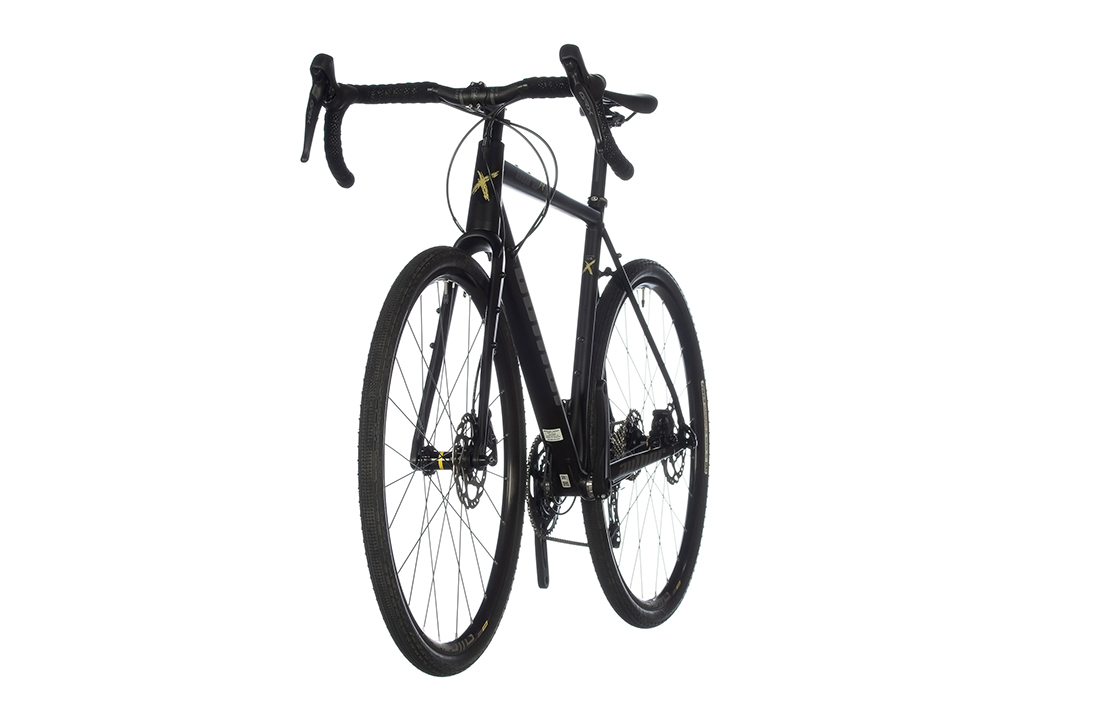

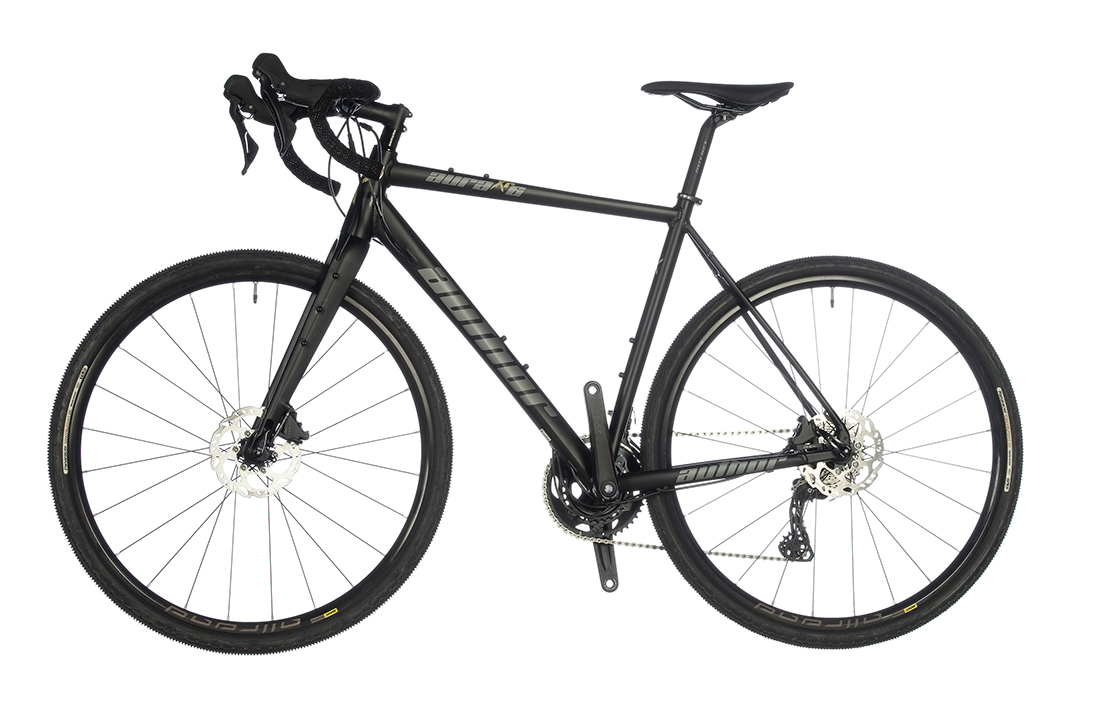

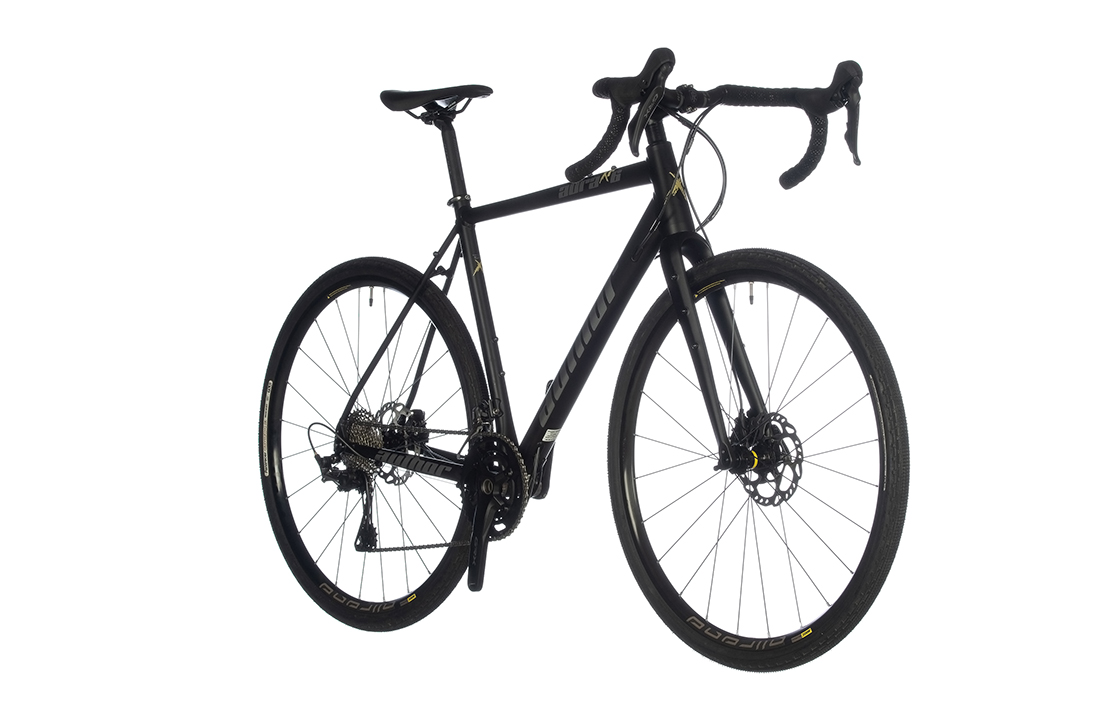

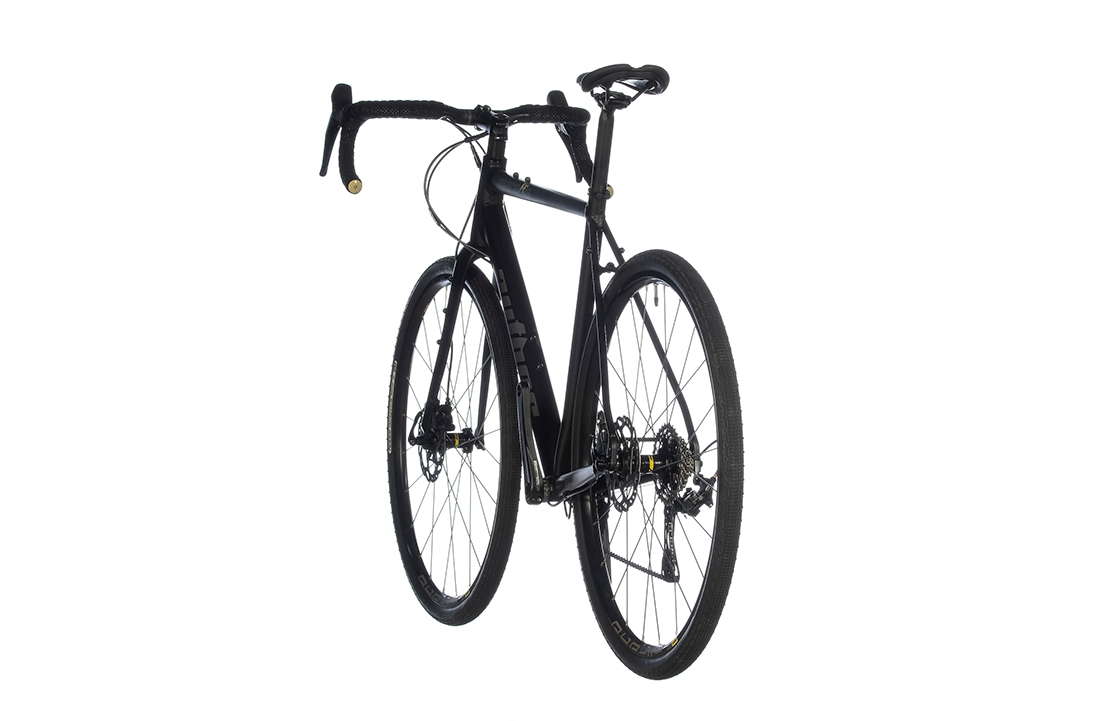

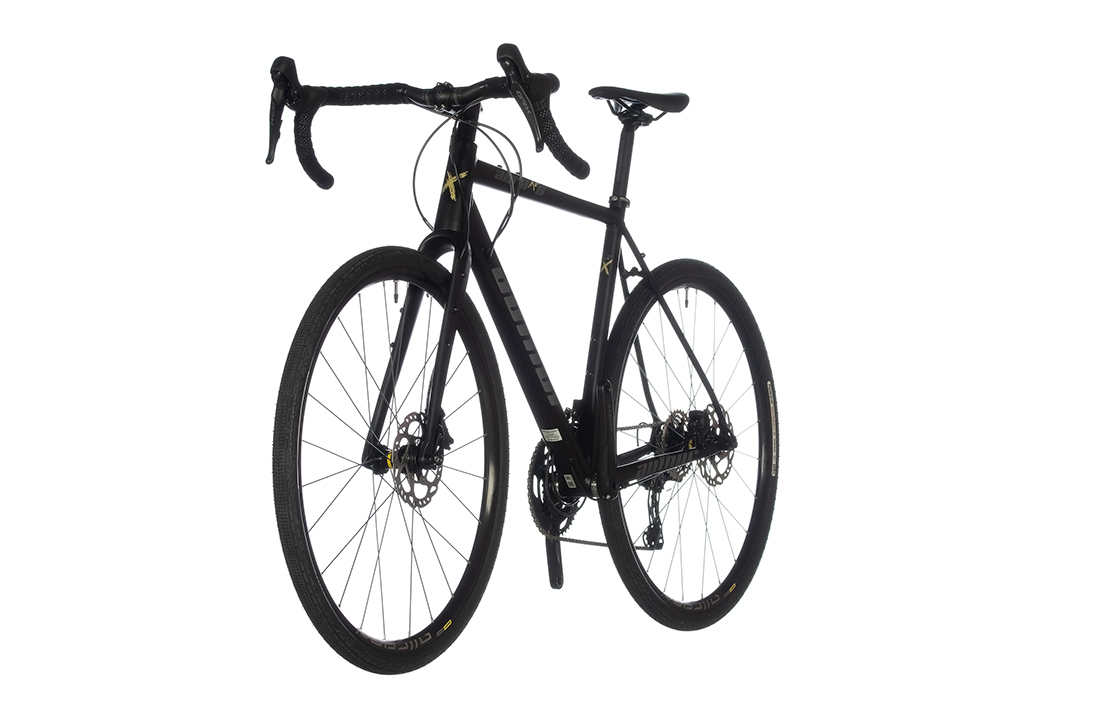

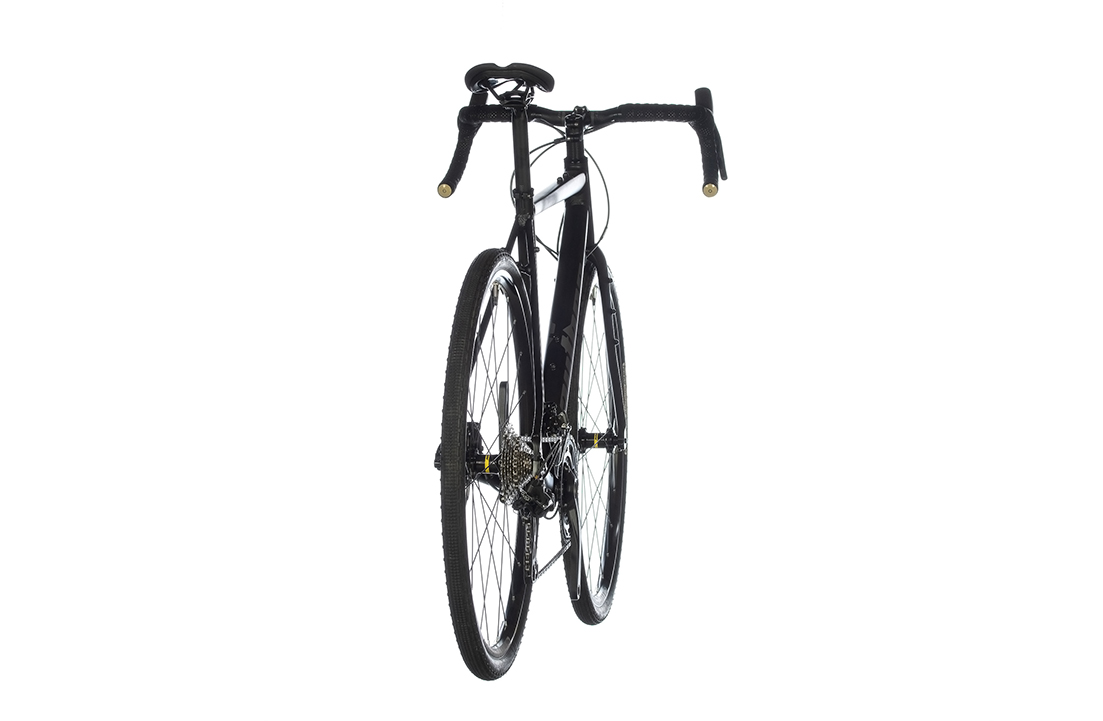

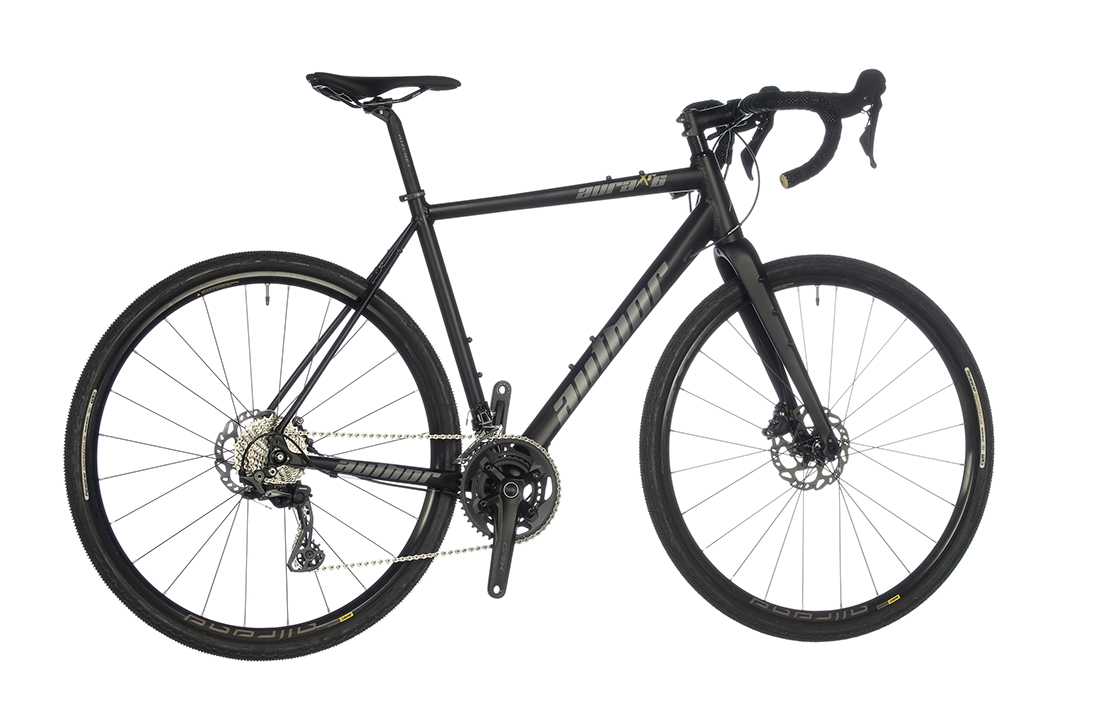

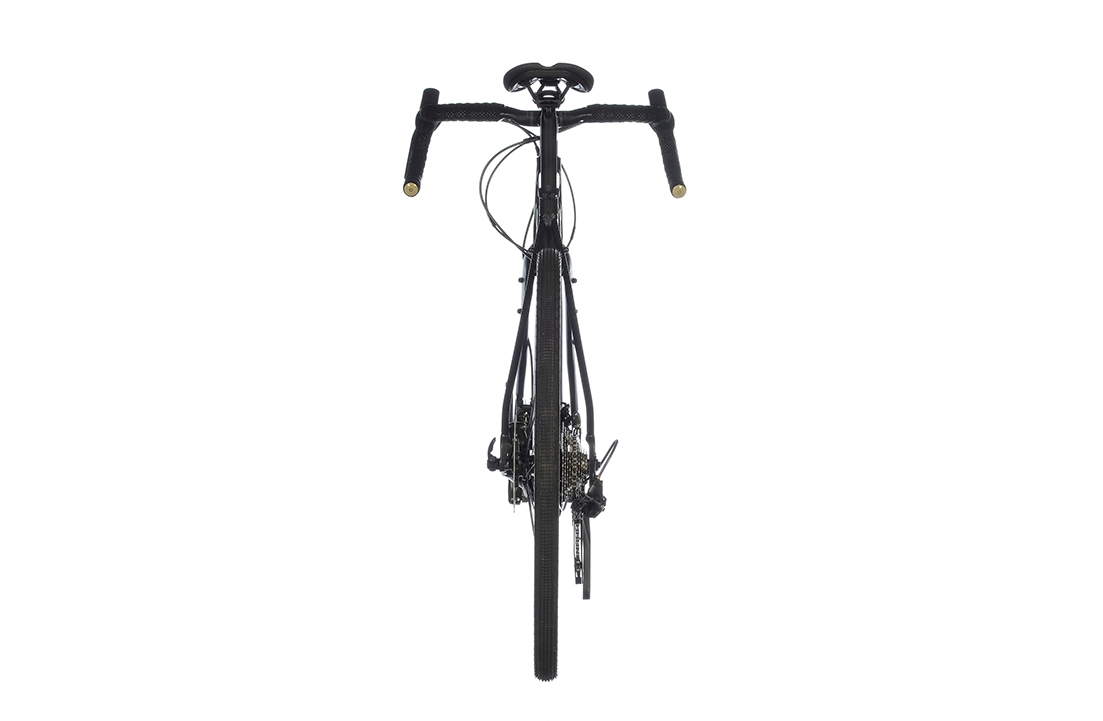

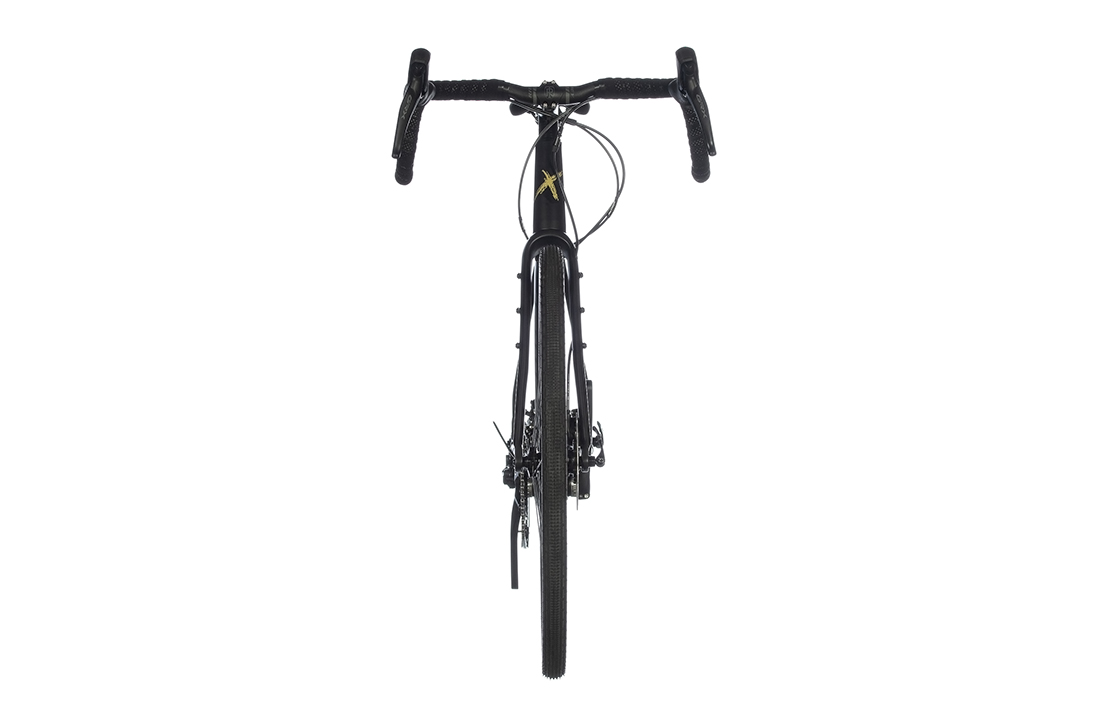

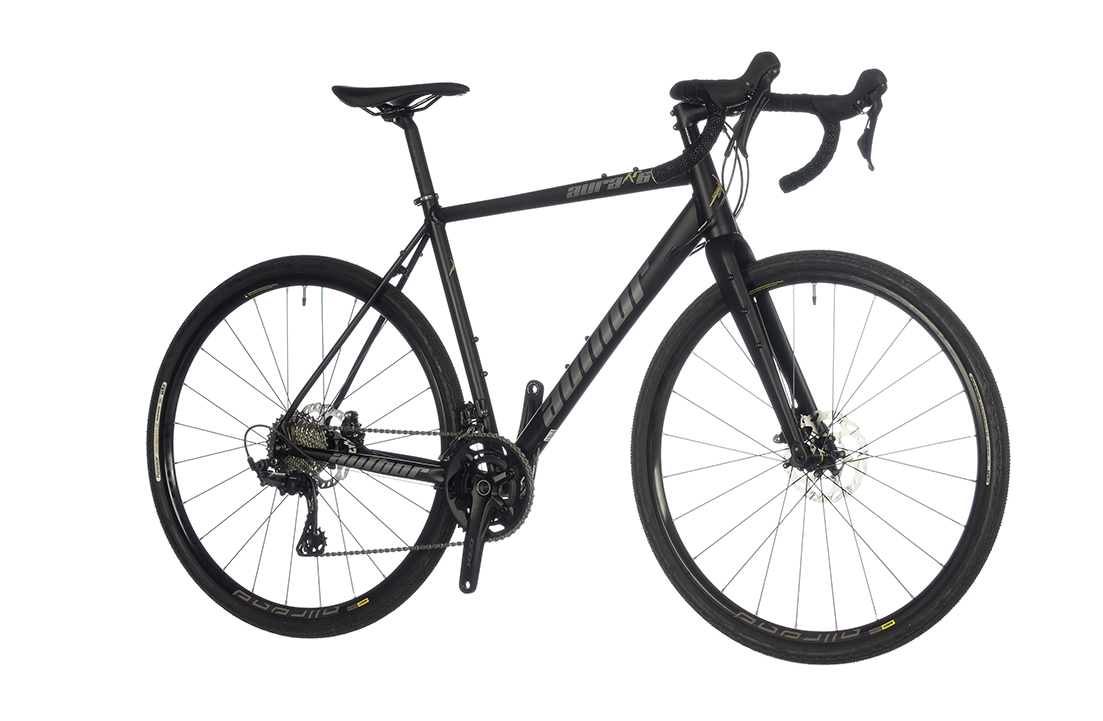

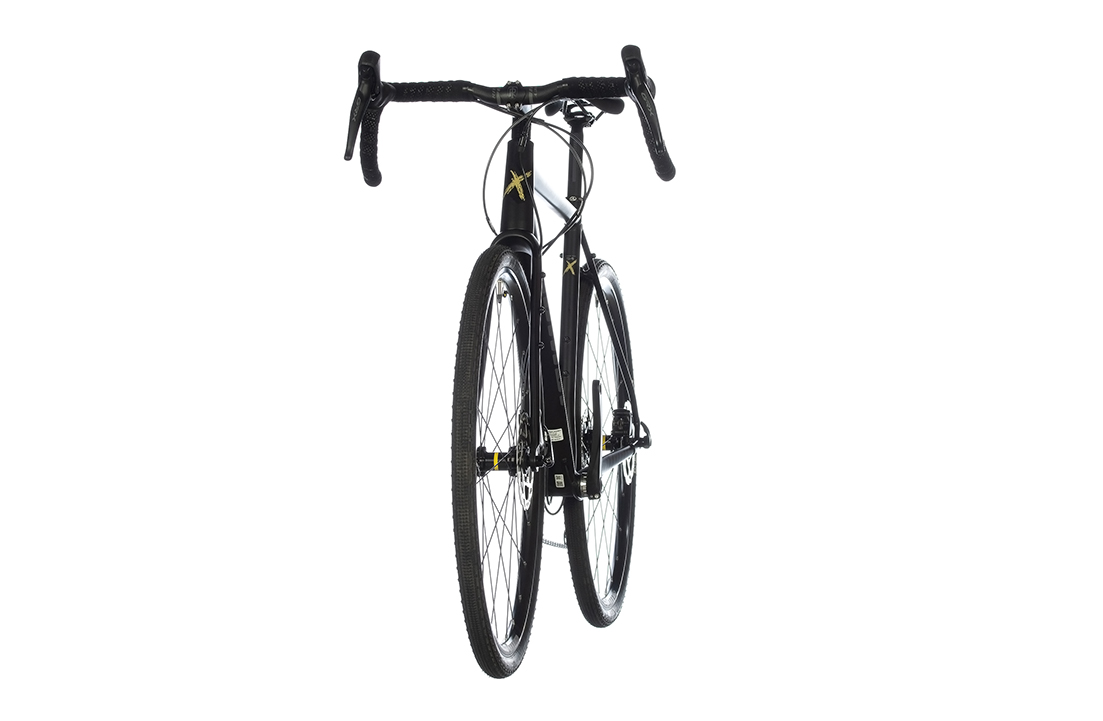

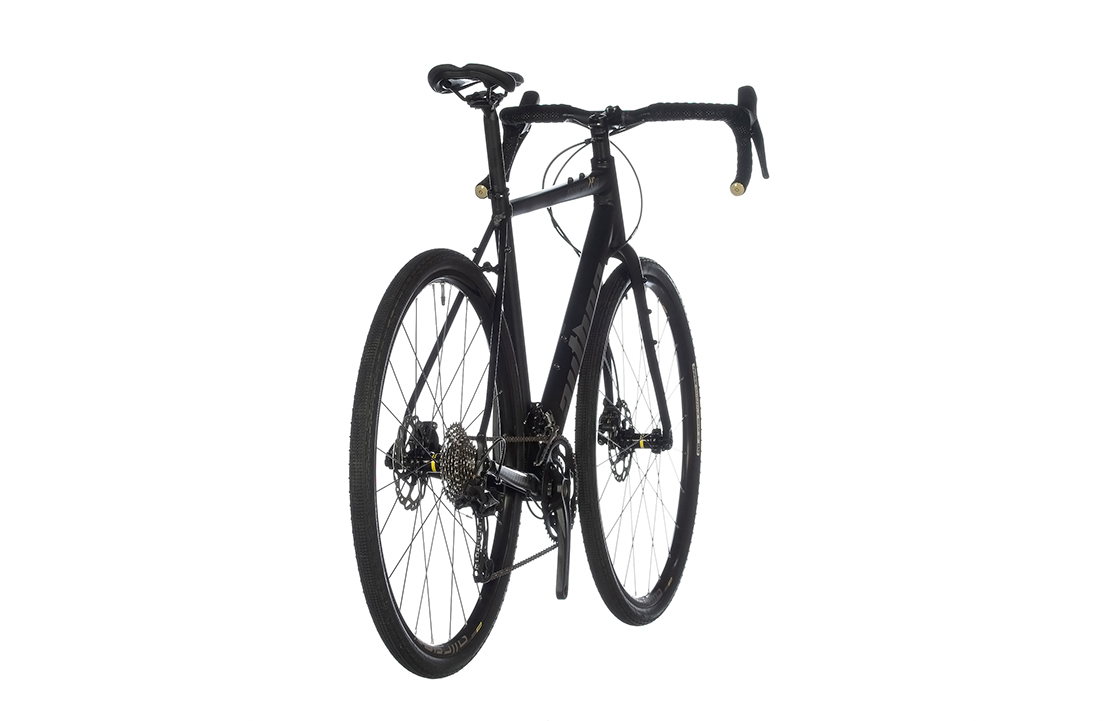

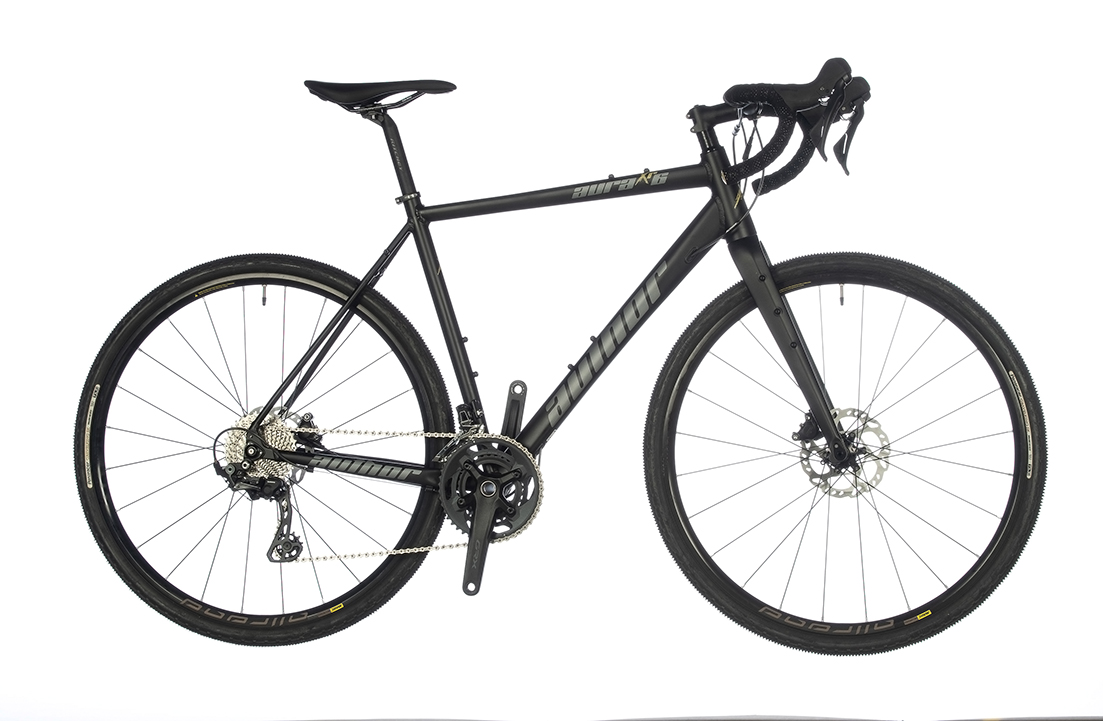

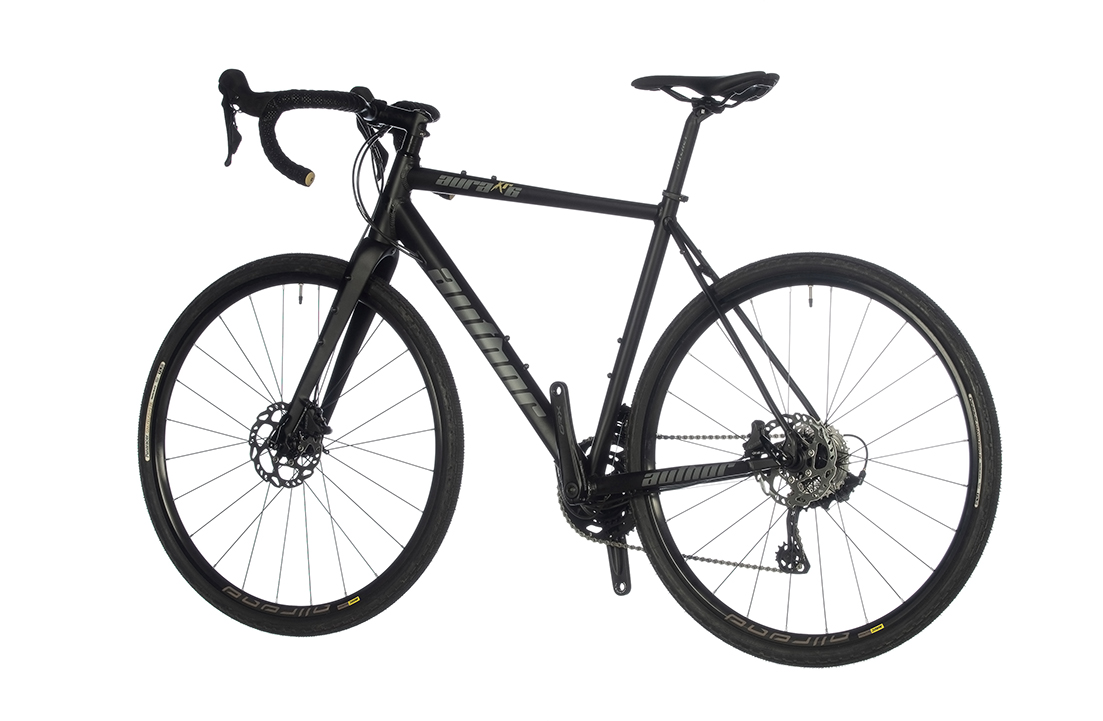

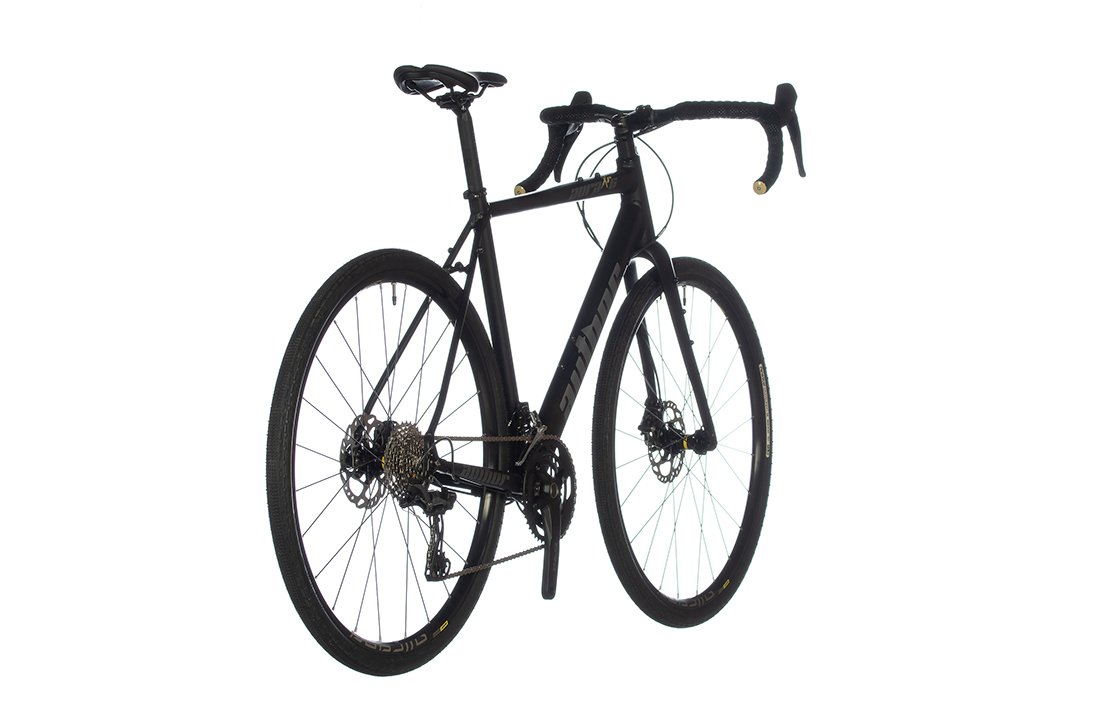

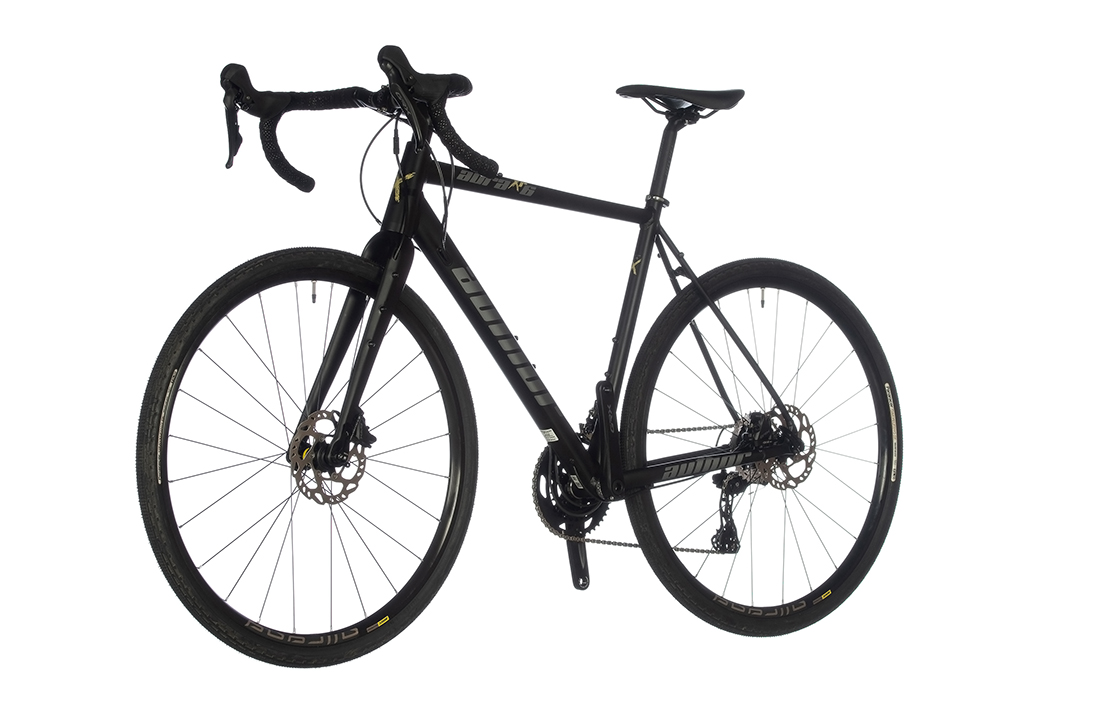

AUTHOR Aura XR6 2021-22Archivní model 2021-22

Colour variants
1
Alloy hydroformed triple butted frame, carbon forkSHIMANO GRX 800/600, 22 speedMAVIC ALLROAD DISC CL UST wheel sets
other models
Interested in other model`s year?

Technical specification

Size500, 520, 540, 560, 580 mm
Frametriple butted alloy 6061
Front forkAUTHOR carbon 1.5" tapered
Head partsPRESTINE Integrated 1.5" tapered
Chain WheelSHIMANO GRX 600 46-30 teeth 172.5 / 175 mm cranks
BBPartsSHIMANO BB-RS500 BB unit
Front derailleurSHIMANO GRX 810
Rear derailleurSHIMANO GRX 810
ShiftersSHIMANO GRX 600 (22)
Free wheelSHIMANO HG700-11 11-34 (11)
ChainKMC X11 EL
HubsMAVIC Allroad Disc CL UST wheel set 20 holes 12 × 100 mm thru front axle 12 × 142 mm rear thru axle
BrakesSHIMANO GRX 400 disc hydraulic (160 mm rotors)
Brakes leversSHIMANO GRX 600
Wheel setMAVIC Allroad Disc CL UST wheel set 20 holes
SpokesMAVIC
TiresPANARACER Gravel King SK aramid 700 × 38c
HandlebarRITCHEY Road ErgoMax 420 / 440 / 460 mm
TapesAUTHOR microfiber / gel
StemRITCHEY Comp 4-Axis
Seat postRITCHEY 2B Comp (27.2)
Seat clampAUTHOR (31.8)
SaddleAUTHOR Guru CR
Speed22

Geometry and sizes

Size 480 500 520 540 560 580
Min. figure [cm] 152 160 168 176 183 190
Max. figure [cm] 162 170 178 185 193 205
S/T c-t [mm] 480 500 520 540 560 580
S/T c-c [mm] 440 460 480 500 520 540
T/T h [mm] 515 530 545 560 580 595
T/T a [mm] 502 518 532 546 563 576
H/T [mm] 100 120 140 160 180 200
C/S [mm] 425 425 425 425 425 425
W/B [mm] 1002 1014 1020 1031 1042 1046
S/T ang. [°] 75 74.5 74 73.5 73 72.5
H/T ang. [°] 70.5 70.5 71 71 71.5 72
F/L [mm] 400 400 400 400 400 400
B/B drop [mm] 71 70 70 69 68 68
B/B width [mm] 0 0 0 0 0 0
Reach [mm] 373 378 382 386 395 397
Stack [mm] 530 548 568 586 606 627
F/R [mm] 45 45 45 45 45 45
Handlebars [mm] 0 0 0 0 0 0
Stem [mm] 0 0 0 0 0 0
Cranks [mm] 0 0 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Aura XR6 2021-22

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

3D model

Product options

black-matt50 = UA#42941502   52 = UA#42941503   54 = UA#42941504   56 = UA#42941505   58 = UA#42941506
