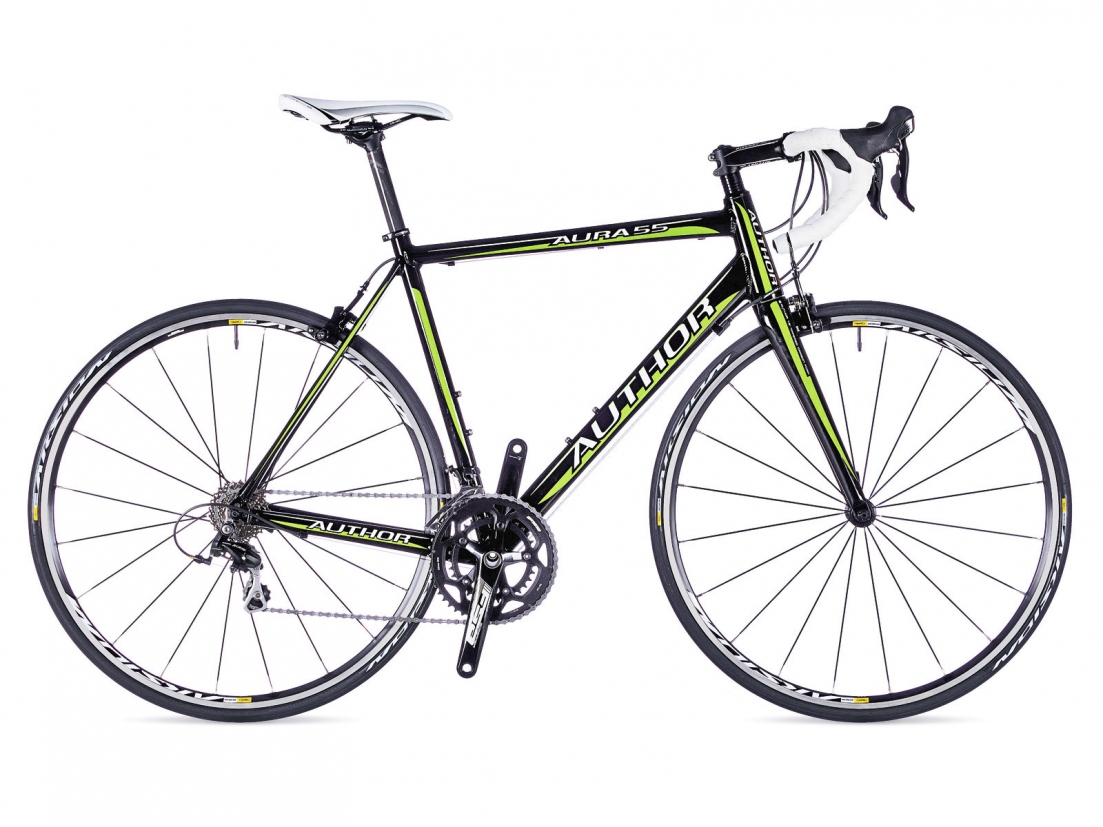

AUTHOR Bicycle Aura 55 2014
  » Bicycles » road » bike models

AUTHOR Aura 55 2014Archivní model 2014

SOLD OUT
other models
Interested in other model`s year?

Technical specification

Size480, 500, 520, 540, 560, 580 mm
Frametriple butted alloy 6061
Front forkAUTHOR C-carbon 1.5" tapered
Head partsPRESTINE Integrated 1.5" tapered
Chain WheelFSA Gossamer Compact MegaExo 50-34 teeth 170 / 172.5 / 175 mm cranks
BBPartsFSA MegaExo
Front derailleurSHIMANO 105 (31.8)
Rear derailleurSHIMANO 105
ShiftersSHIMANO 105 (20)
Free wheelSHIMANO CS-5700 11-25 (10)
ChainSHIMANO 5700
HubsMAVIC Aksium WTS 25 Wheel Set 20 / 20 holes
BrakesTEKTRO R540
Brakes leversSHIMANO 105
RimsMAVIC Aksium WTS Wheel Set 20 / 20 holes
SpokesMAVIC
TiresMAVIC kevlar 700 x 25c
Pedals-
HandlebarRITCHEY Logic II Comp Road 420 / 440 mm
GripsAUTHOR PU / foam / gel
StemRITCHEY Pro 4-Axis
Seat postAUTHOR carbon (27.2)
Seat clampAUTHOR (31.8)
SaddleAUTHOR Aura
Speed20
Weight8,2 kg / 540 mm
Seat bolt-

Geometry and sizes

Size 48 50 52 54 56 58
Min. figure [cm] 154 160 168 176 186 193
Max. figure [cm] 162 170 178 188 195 202
S/T c-t [mm] 480 500 520 540 560 580
S/T c-c [mm] 440 460 480 500 520 540
T/T h [mm] 525 532 542 556 570 583
T/T a [mm] 512 519 529 543 556 570
H/T [mm] 125 140 155 170 185 200
C/S [mm] 410 410 410 410 410 410
W/B [mm] 982 985 990 998 1006 1014
S/T ang. [°] 74.5 74.2 74 73.7 73.3 73
H/T ang. [°] 71.5 71.8 72.2 72.5 72.8 73
F/L [mm] 370 370 370 370 370 370
B/B drop [mm] 72 71 70 70 69 68
B/B width [mm] 0 0 0 0 0 0
Reach [mm] 0 0 0 0 0 0
Stack [mm] 0 0 0 0 0 0
F/R [mm] 45 45 45 45 45 45
Handlebars [mm] 0 0 0 0 0 0
Stem [mm] 0 0 0 0 0 0
Cranks [mm] 0 0 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
