AUTHOR Aura 33 2016Archivní model 2016

Colour variants
Triple butted alloy frameComponents set SHIMANO SoraVITTORIA Zaffiro tires
price 21 990 Kč
SOLD OUT
Road bike Author Aura 33 with alloy frame and triple butted tubes for maximum weight loss will provide a very nice ride and performance at an affordable price level. Component set Shimano Sora, 18-speed, compact chain wheel, kevlar tires and pleasant frame geometry together form a comfortable, stable road machine with good performance that offers you a perfect ride whether you are just a beginner or you have already some seasons in your legs.
other models
Interested in other model`s year?

Technical specification

Size480, 500, 520, 540, 560, 580 mm
Frametriple butted alloy 6061
Front forkAUTHOR alloy 1.5" tapered
Head partsPRESTINE Integrated 1.5" tapered
Chain WheelPROWHEEL Ounce Compact 50-34 teeth 170 / 172.5 / 175 mm cranks
BBPartsSHIMANO UN100
Front derailleurSHIMANO Sora (31.8)
Rear derailleurSHIMANO Sora
ShiftersSHIMANO Sora (18)
Free wheelSHIMANO HG50-9 11-32 (9)
ChainSHIMANO HG53
HubsQUANDO Road 32 holes
BrakesTEKTRO R325
Brakes leversSHIMANO Sora
RimsJALCO DRX 27 32 holes
Spokesblack stainless steel 2.0 mm
TiresVITTORIA Zaffiro 700 x 28c
HandlebarAUTHOR 440 / 460 mm
TapesAUTHOR suede / gel
StemAUTHOR
Seat postAUTHOR (27.2)
Seat clampAUTHOR (31.8)
SaddleAUTHOR Aura
Speed18
Weight9.9 kg / 54cm

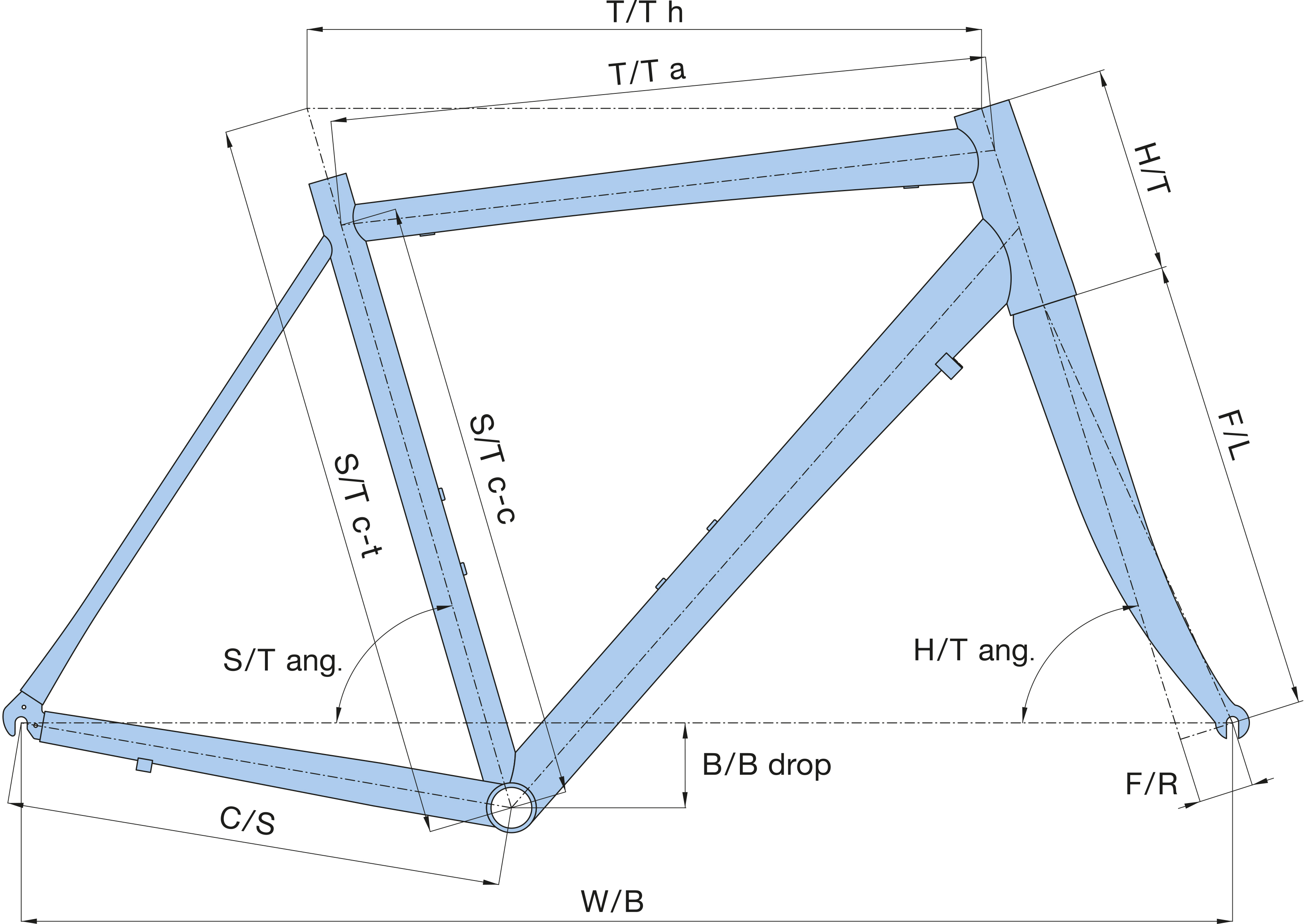

Geometry and sizes

Size 480 500 520 540 560 580
Min. figure [cm] 154 160 168 176 186 193
Max. figure [cm] 162 170 178 188 195 202
S/T c-t [mm] 480 500 520 540 560 580
S/T c-c [mm] 440 460 480 500 520 540
T/T h [mm] 525 532 542 556 570 583
T/T a [mm] 512 519 529 543 556 570
H/T [mm] 125 140 155 170 185 200
C/S [mm] 420 420 420 420 420 420
W/B [mm] 993 995 1000 1008 1016 1024
S/T ang. [°] 74.5 74.2 74 73.7 73.3 73
H/T ang. [°] 71.5 71.8 72.2 72.5 72.8 73
F/L [mm] 370 370 370 370 370 370
B/B drop [mm] 72 71 70 70 69 68
B/B width [mm] 68 68 68 68 68 68
Reach [mm] 0 0 0 0 0 0
Stack [mm] 0 0 0 0 0 0
F/R [mm] 45 45 45 45 45 45
Handlebars [mm] 0 0 0 0 0 0
Stem [mm] 0 0 0 0 0 0
Cranks [mm] 0 0 0 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Aura 33 2016

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set

Product options

white / blue48 = UA#42868901   50 = UA#42868902   52 = UA#42868903   54 = UA#42868904   56 = UA#42868905   58 = UA#42868906
