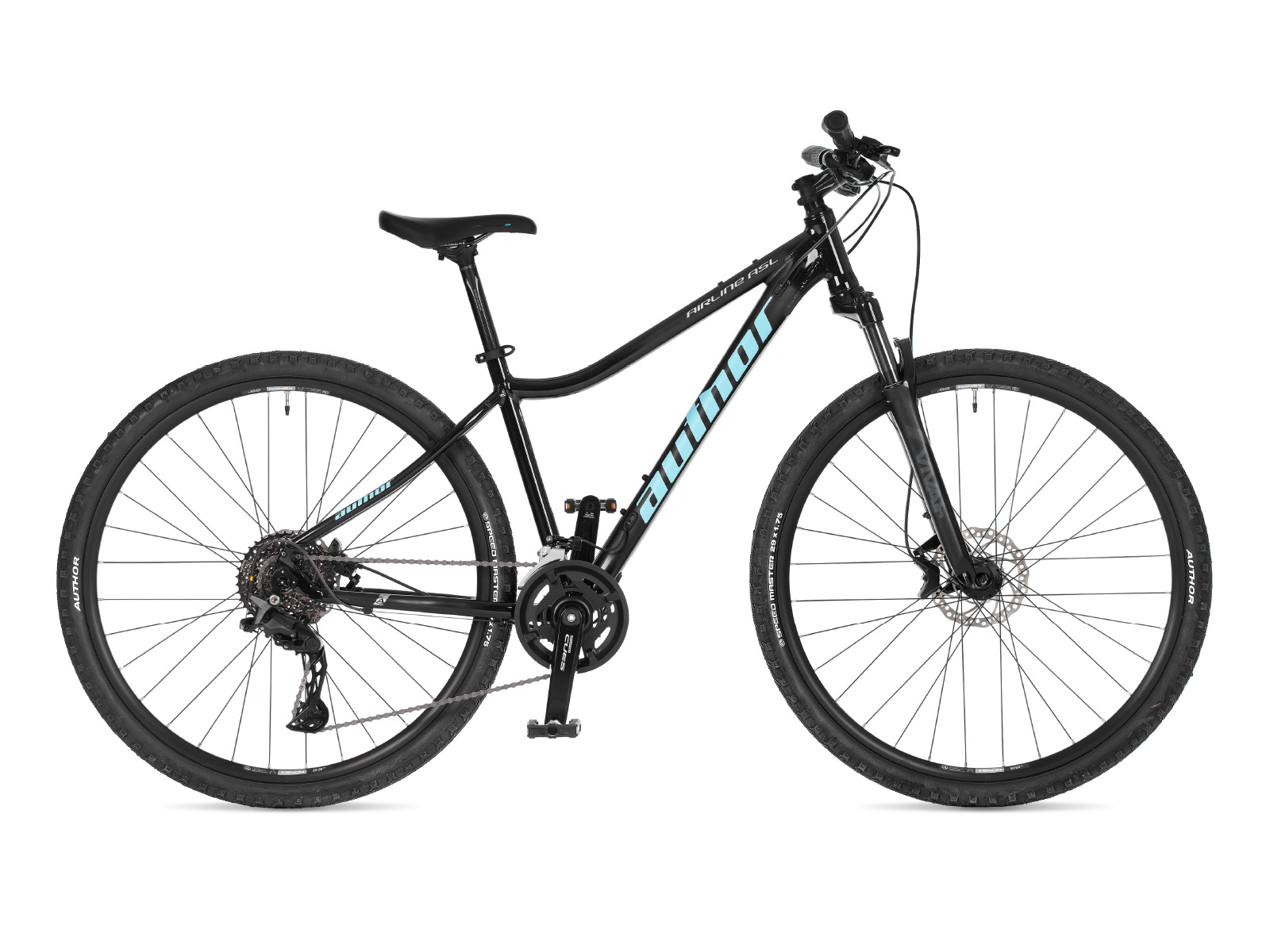

Airline ASL 2025

Technical specification

Size	17", 19"
Frame	triple butted alloy 6061 29" (ASL)
Front fork	RST Viv Air TnL, air, lock out (80 mm)
Head parts	PRESTINE Integrated 1-1/8"
Chain Wheel	SHIMANO Cues 4000, 40-26 teeth, 170 / 175 mm cranks
BBParts	SHIMANO BB-MT500, BB unit
Front derailleur	SHIMANO Cues 6000 (31.8)
Rear derailleur	SHIMANO Cues 6000
Shifters	SHIMANO Cues 6000 (20)
Free wheel	SHIMANO CS-LG400-10, 11-39 (10)
Chain	KMC XGlide
Hubs	AUTHOR Radon, 32 holes
Brakes	TEKTRO HD-M530, disc hydraulic (6" rotors)

Brakes levers	TEKTRO HD-M530
Rims	AUTHOR Xenon 29, 32 holes
Spokes	black stainless steel 2.0 mm
Tires	AUTHOR Speed Master, 29" × 1.75"
Pedals	AUTHOR Non Slip alloy
Handlebar	AUTHOR alloy, 15 mm, 660 / 680 mm
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (27.2)
Seat clamp	AUTHOR (31.8)
Saddle	AUTHOR Fenix
Speed	20

Geometry and sizes

Size	15"	17"	19"
Min. figure ~~[cm]~~	145	155	170
Max. figure ~~[cm]~~	158	172	185
S/T c-t ~~[mm]~~	381	432	483
S/T c-c ~~[mm]~~	0	0	0
T/T h ~~[mm]~~	550	570	590
T/T a ~~[mm]~~	536	549	566
H/T ~~[mm]~~	110	120	130
C/S ~~[mm]~~	450	450	450
W/B ~~[mm]~~	1057	1077	1098
S/T ang. ~~[°]~~	73.5	73.5	73.5
H/T ang. ~~[°]~~	70.5	70.5	70.5
F/L ~~[mm]~~	490	490	490
B/B drop ~~[mm]~~	60	60	60
B/B width ~~[mm]~~	68	68	68
Reach ~~[mm]~~	370	386	404
Stack ~~[mm]~~	609	619	628
F/R ~~[mm]~~	44	44	44
Handlebars ~~[mm]~~	0	0	0
Stem ~~[mm]~~	0	0	0
Cranks ~~[mm]~~	0	0	0

maxmin

~~185 cm~~

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
