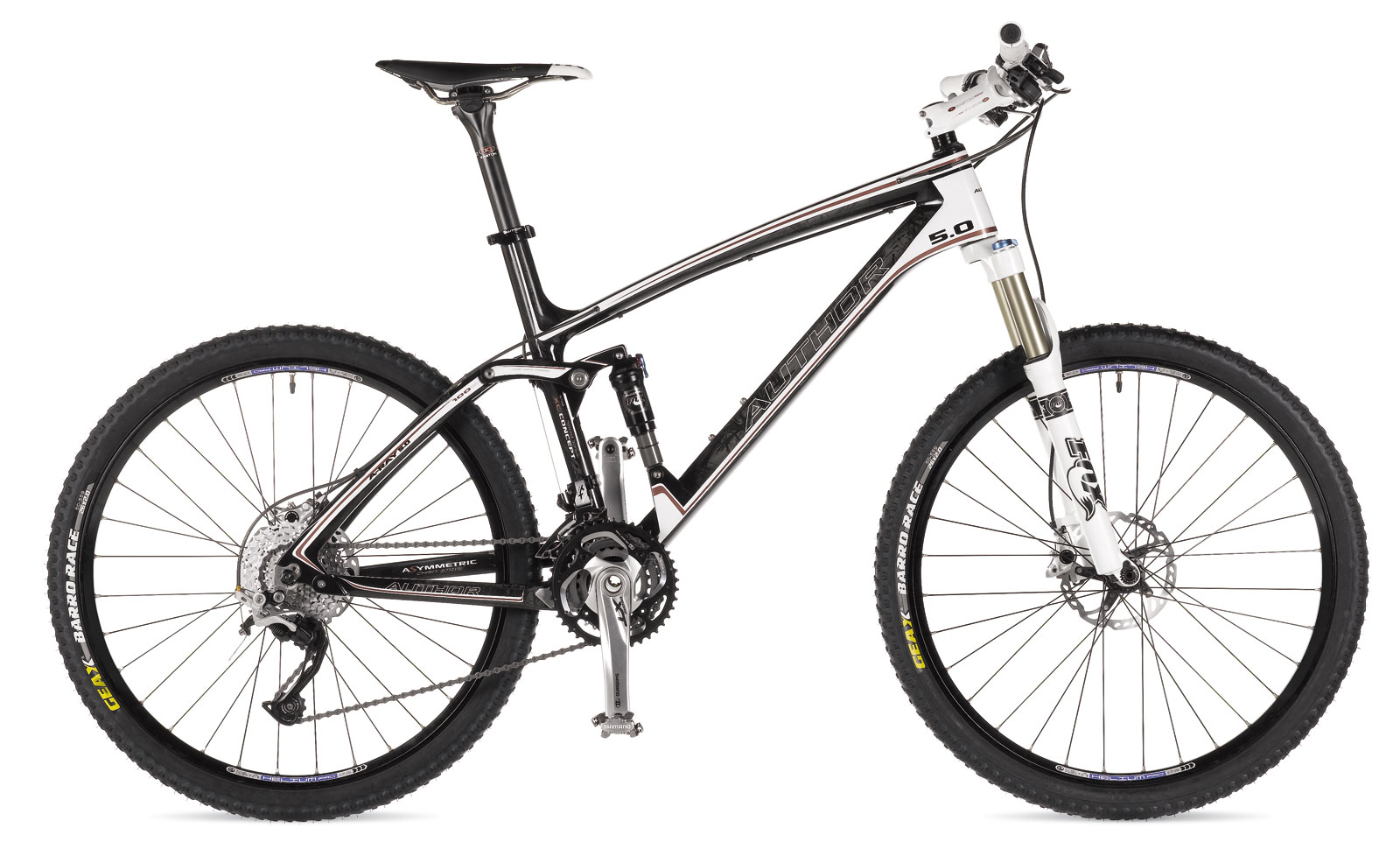

AUTHOR A-Ray 5.0 2012Archivní model 2012

SOLD OUT
Interested in other model`s year?

Technical specification

Size17", 19", 21"
Framecarbon monocoque, suspension
Shockeroil-air shocker FOX Float RPL lock out 165 / 38 mm (rear travel 100 mm)
Front forkFOX 32 Float 100 Fit RL air, lock out 15 mm thru axle 1.5" taper steerer (100 mm)
Head partsFSA Orbit C-40 1.5" taper
Chain WheelSHIMANO XT-10 42-32-24 teeth 170 / 175 mm cranks
BBPartsSHIMANO XT-10 BB unit
Front derailleurSHIMANO XT (34.9)
Rear derailleurSHIMANO XT
ShiftersSHIMANO XT (30)
Free wheelSHIMANO M771-10 11-36 (10)
ChainSHIMANO HG-74
HubsSHIMANO XT Disc 15 mm thru axle 32 holes
BrakesSHIMANO XT disc hydraulic (6" rotors)
Brakes leversSHIMANO XT
RimsAUTHOR Helium Pro 32 holes
Spokesblack stainless steel 2.0 mm double butted
TiresGEAX Barro Race Kevlar 26" x 2.00"
PedalsSHIMANO M540 clipless
HandlebarEASTON EC90 carbon 20 mm 635 mm
GripsAUTHOR GripLock
StemEASTON EA90
Seat postEASTON EC 70 Zero carbon (31.6)
Seat clampAUTHOR (34.9)
SaddleFIZIK Tundra II kium
Speed30
Weight11,1 Kg / 19"

Geometry and sizes

Size 17" 19" 21"
Min. figure [cm] 165 178 188
Max. figure [cm] 179 189 202
S/T c-t [mm] 432 482 535
S/T c-c [mm] 0 0 0
T/T h [mm] 590 610 625
T/T a [mm] 0 0 0
H/T [mm] 120 125 130
C/S [mm] 425 425 425
W/B [mm] 1080 1100 1115
S/T ang. [°] 73 73 73
H/T ang. [°] 71 71 71
F/L [mm] 480 480 480
B/B drop [mm] 10 10 10
B/B width [mm] 0 0 0
Reach [mm] 0 0 0
Stack [mm] 0 0 0
F/R [mm] 39 39 39
Handlebars [mm] 0 0 0
Stem [mm] 0 0 0
Cranks [mm] 0 0 0
maxmin
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR A-Ray 5.0 2012

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
