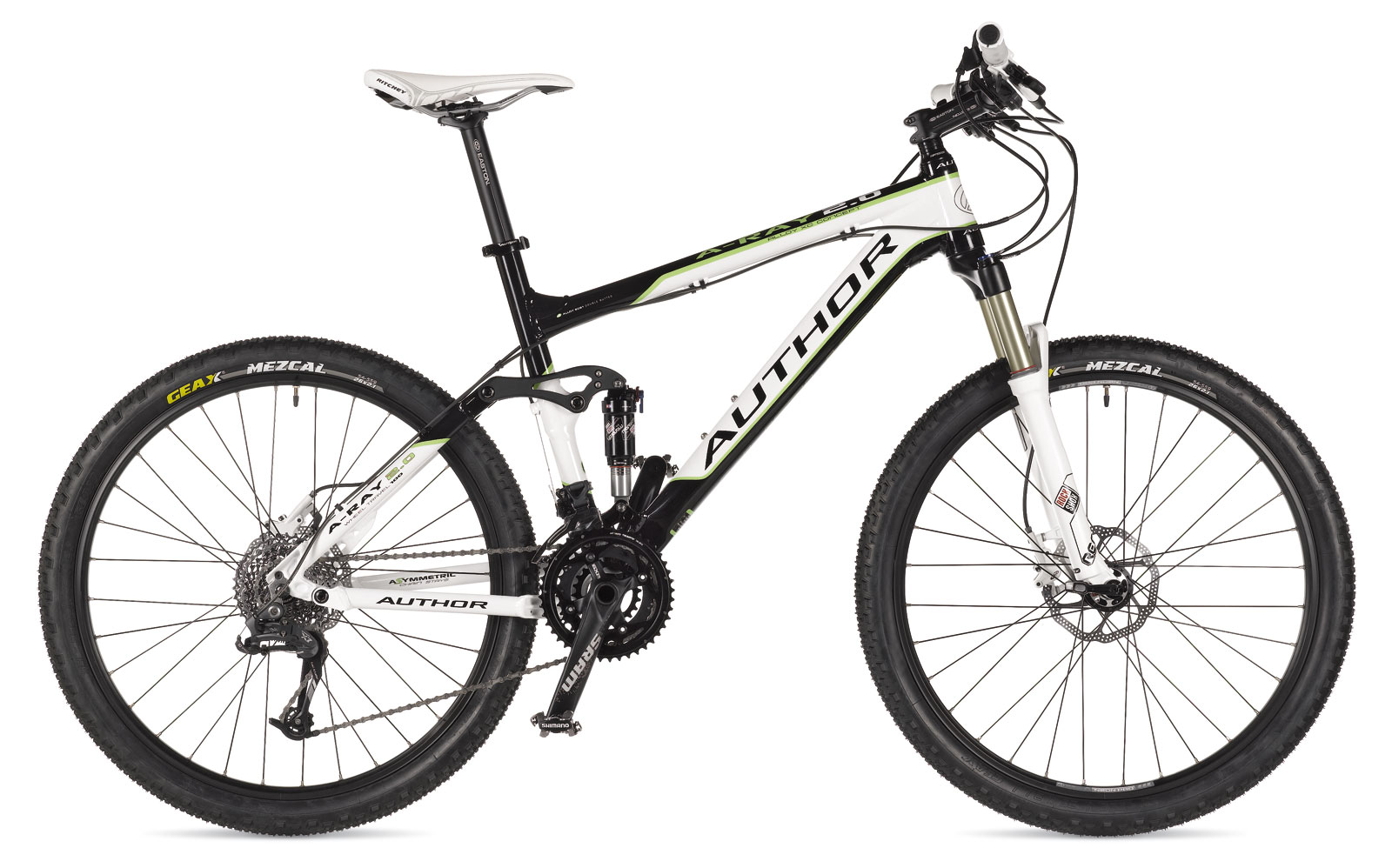

AUTHOR A-Ray 2.0 2012Archivní model 2012

SOLD OUT

Interested in other model`s year?

2009 2010 2011 2012 2013 2014

Technical specification

Size	17", 19", 21"
Frame	double butted alloy 6061, suspension
Shocker	oil-air shocker ROCK SHOX Monarch RT3 lock out 165 / 38 mm (rear travel 100 mm)
Front fork	ROCK SHOX Recon Gold TK 15 Solo Air RL air, remote lock out 15 mm thru axle 1.5" taper steerer (100 mm)
Head parts	FSA Orbit C-40 1.5" taper
Chain Wheel	SRAM S1000 44-33-22 teeth 170 / 175 mm cranks
BBParts	SRAM GXP
Front derailleur	SRAM X7 (34.9)
Rear derailleur	SRAM X7
Shifters	SRAM X7 Trigger (30)
Free wheel	SRAM PG-1050 12-36 (10)
Chain	SRAM PC-1031
Hubs	AUTHOR Helium / Xenon Disc 15 mm thru axle 32 holes
Brakes	AVID Elixir 3 disc hydraulic (6" rotors)

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
