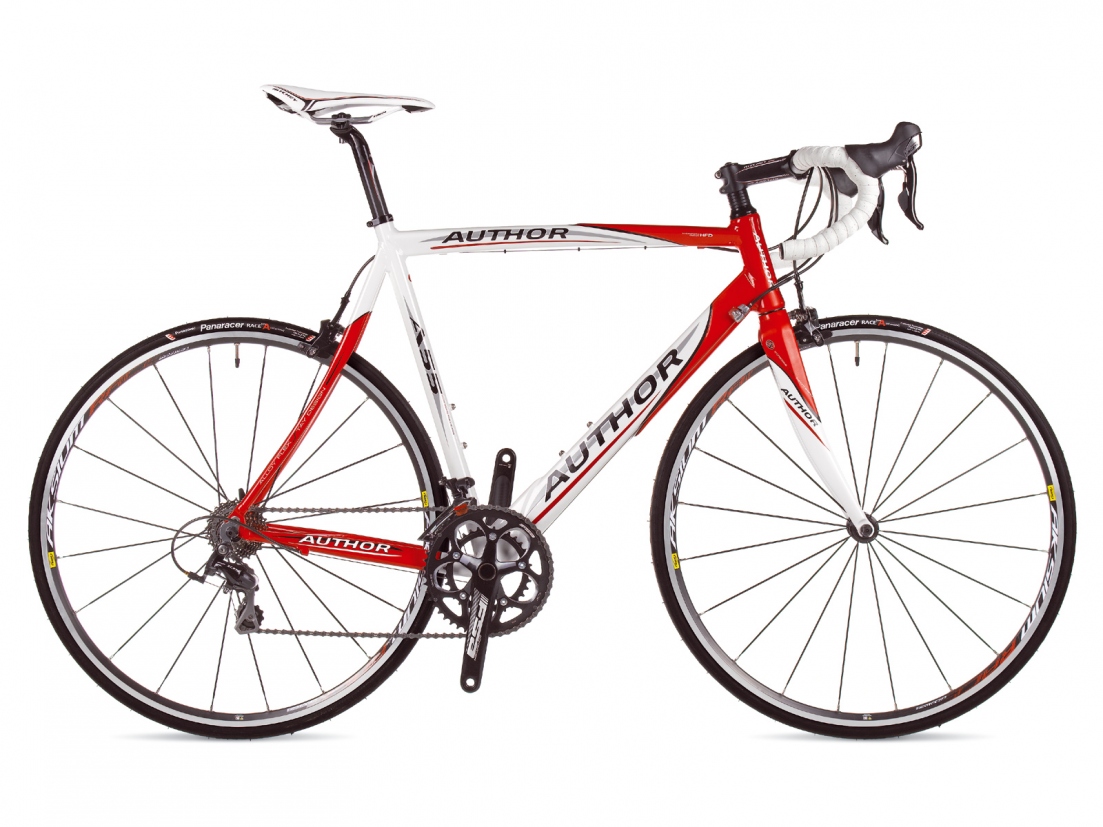

AUTHOR A 55 2013Archivní model 2013

SOLD OUT

other models

Interested in other model`s year?

2012 2013

Technical specification

Size	48, 50, 52, 54, 56, 58 cm
Frame	triple butted alloy 6061
Front fork	AUTHOR carbon monocoque
Head parts	PRESTINE Integrated 1-1/8"
Chain Wheel	FSA Gossamer Compact MegaExo 50-34 teeth 170 / 172.5 / 175 mm cranks
BBParts	FSA MegaExo
Front derailleur	SHIMANO 105 (31.8)
Rear derailleur	SHIMANO 105
Shifters	SHIMANO 105 (20)
Free wheel	SHIMANO CS-5700 11-25 (10)
Chain	SHIMANO 5700
Hubs	MAVIC Aksium Wheel Set 20 / 20 holes
Brakes	TEKTRO R540

Brakes levers	SHIMANO 105
Rims	MAVIC Aksium Wheel Set 20 / 20 holes
Spokes	MAVIC Aksium
Tires	PANARACER Race Type A Kevlar 700 x 23c
Handlebar	RITCHEY Logic II Comp Road 420 / 440 mm
Stem	RITCHEY Pro 4-Axis
Seat post	AUTHOR carbon (27.2)
Seat clamp	AUTHOR (31.8)
Saddle	RITCHEY Streem V2
Speed	20
Weight	8,7 Kg / 54 cm

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
