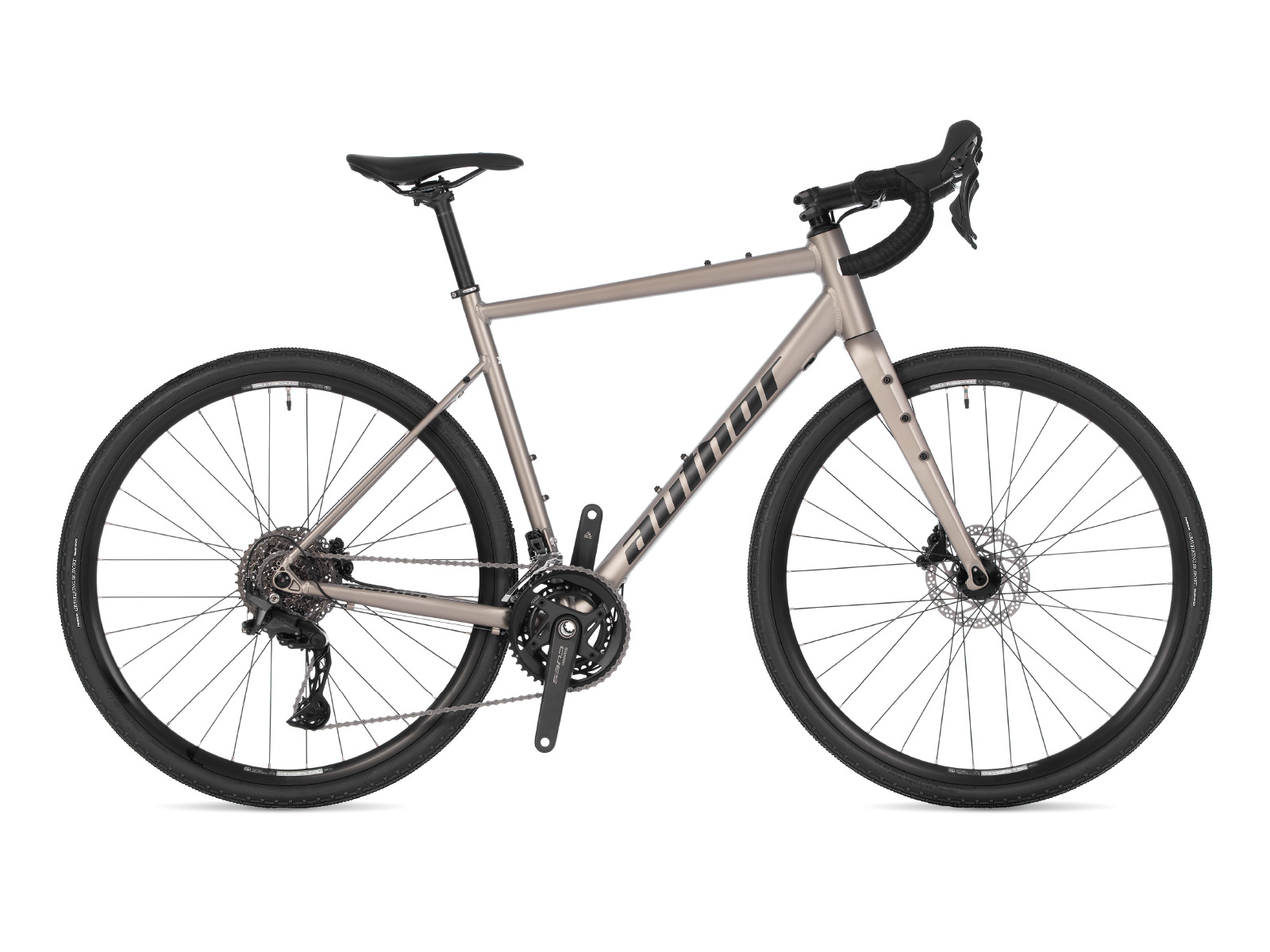

Aura XR4 2026

~~Colour variants~~

Tripple butted alloy frame with fully Integrated Cable Routing included head setLightweight full carbon fork with 6 threaded bossesSHIMANO CUES components, 20 speedSHIMANO CUES BR-UR6030 hydraulic disc brakesPANARACER Gravel King SK Sport 700 x 38C tiresPROMAX ergoshaped gravel handlebarsHow to choose a bike

~~Buy now~~special price 34 990 Kč

original price ~~41 990 Kč~~

Technical specification

Size	50, 52, 54, 56, 58 cm

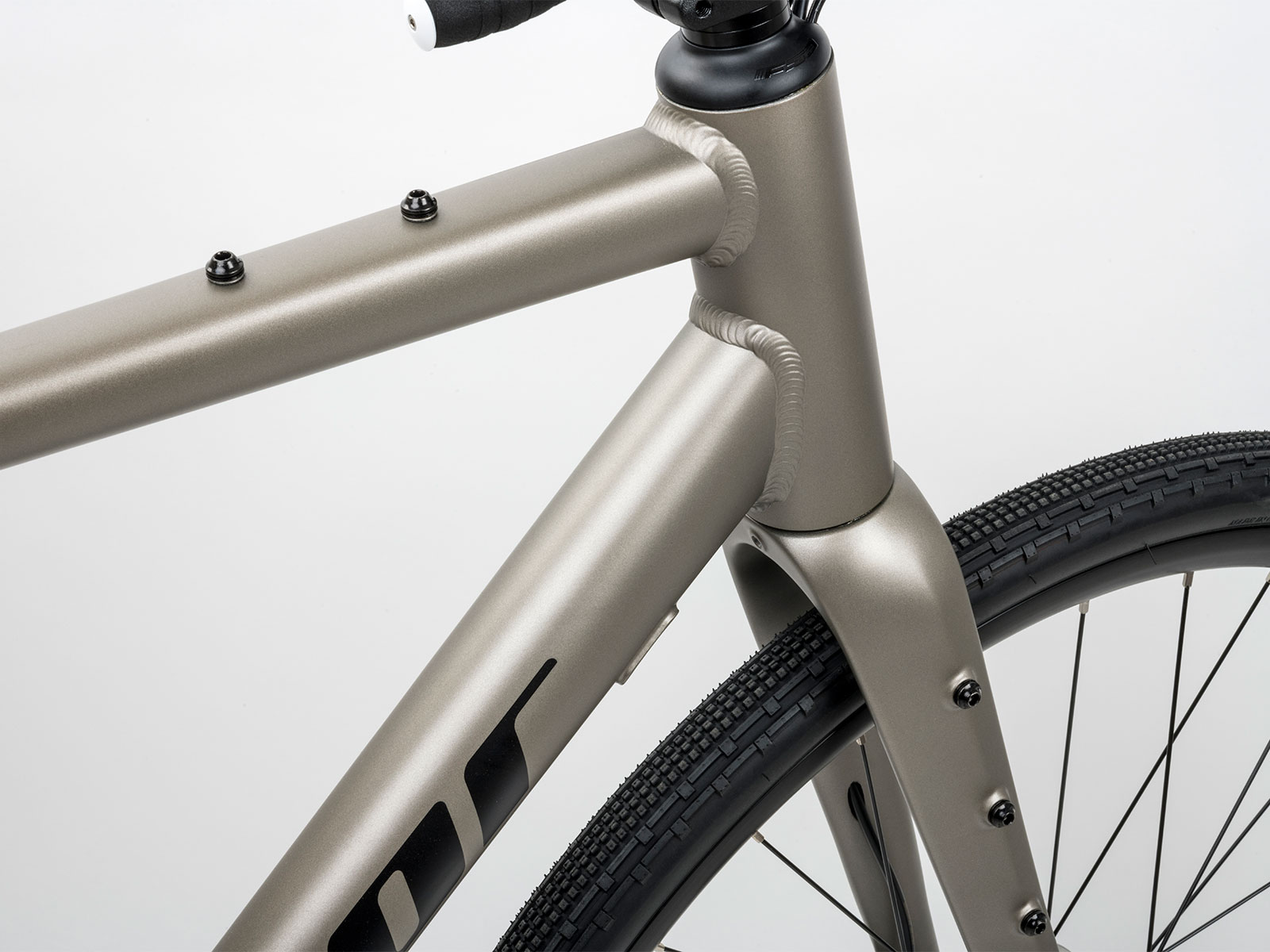

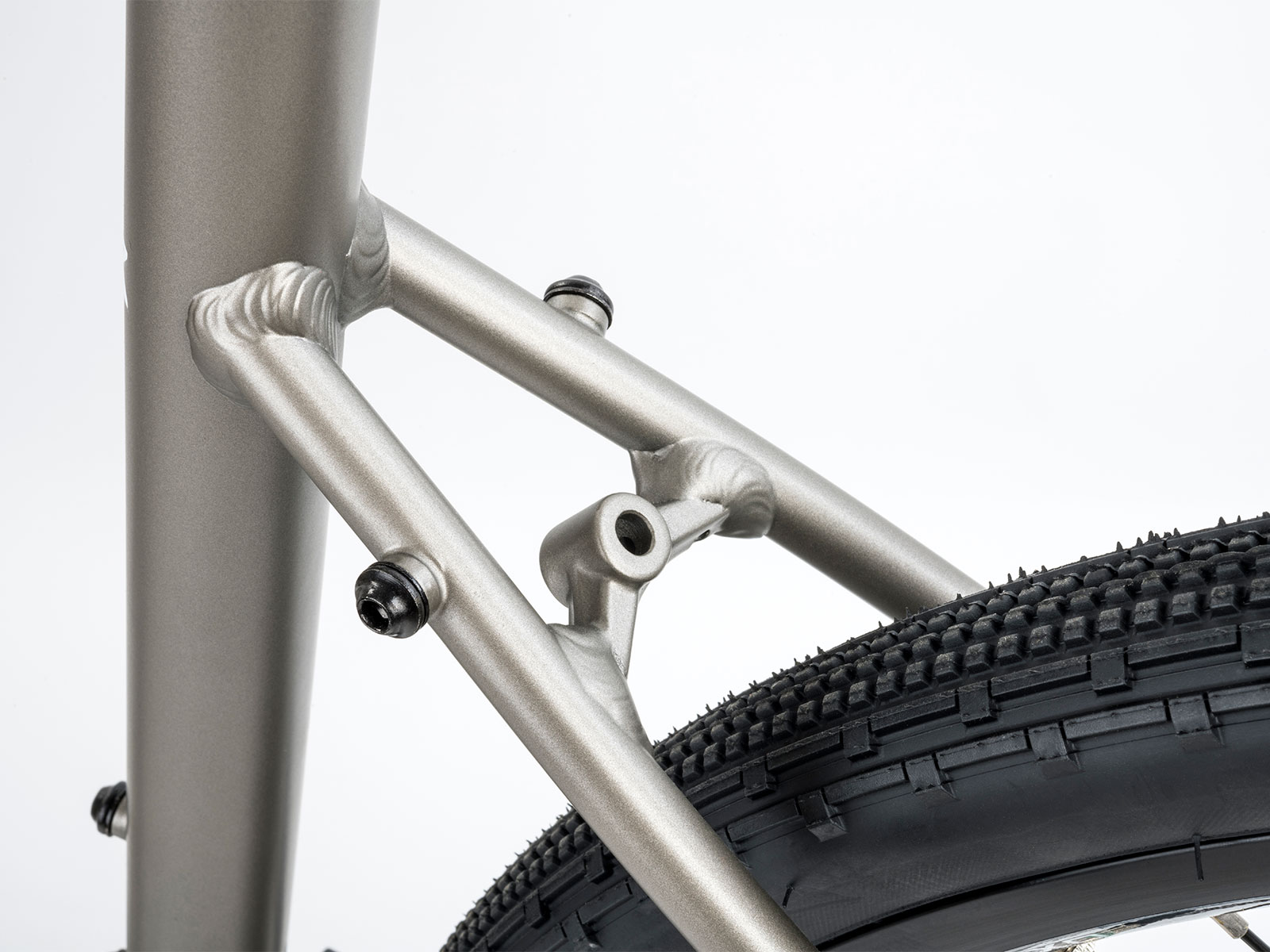

Frame	triple butted alloy (max. tyre size 45 mm)

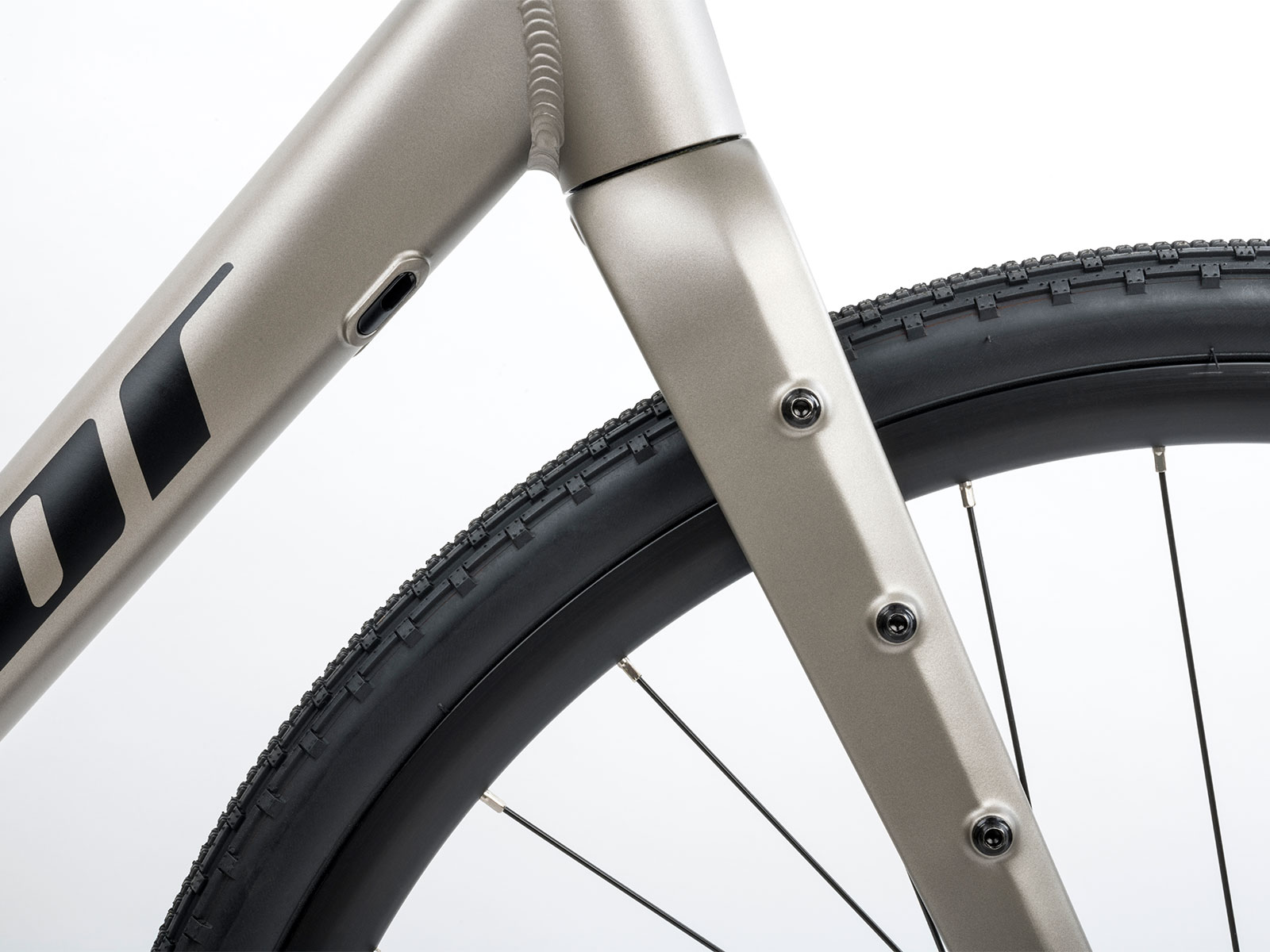

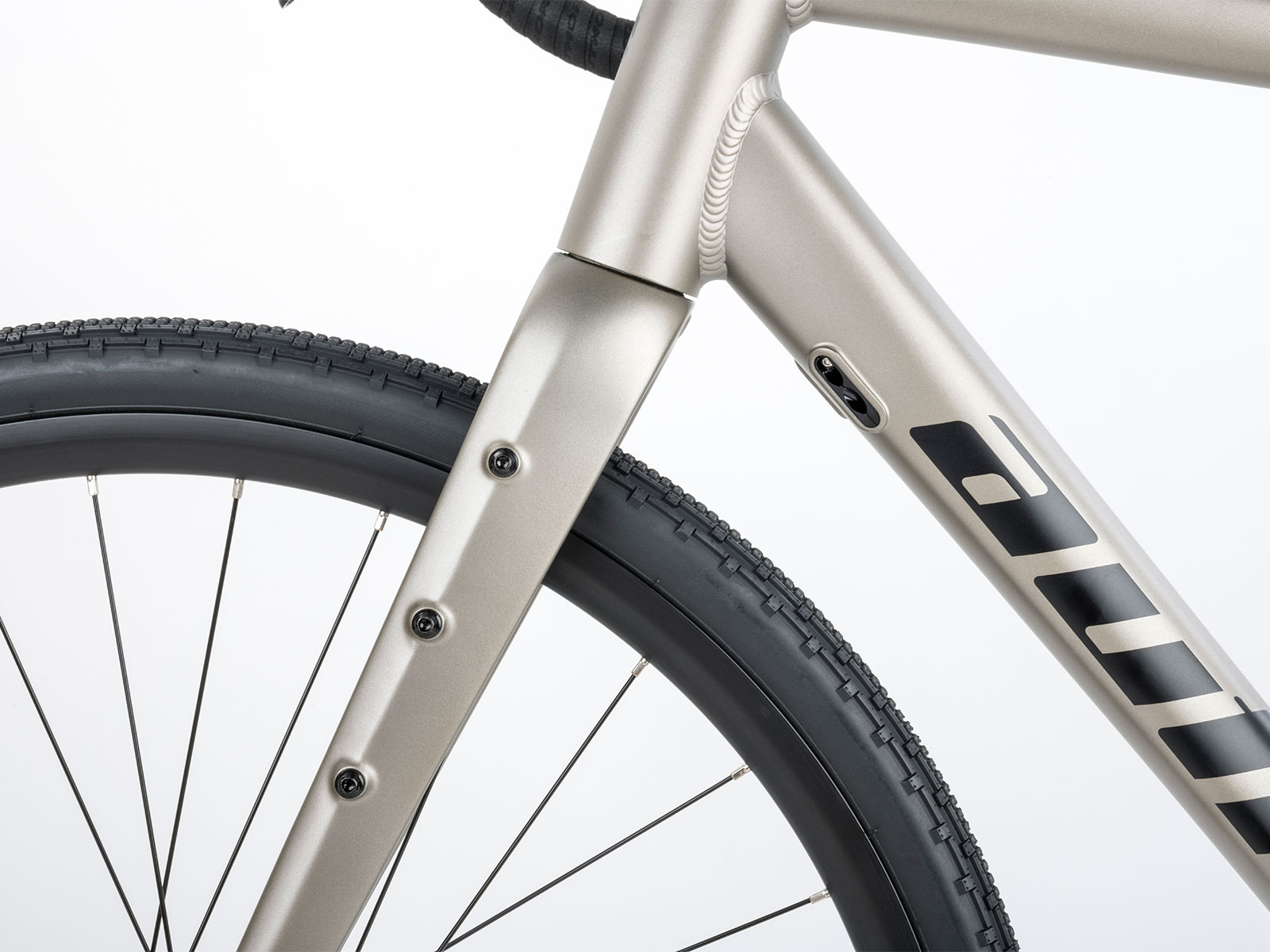

Front fork	AUTHOR carbon, 1.5" tapered

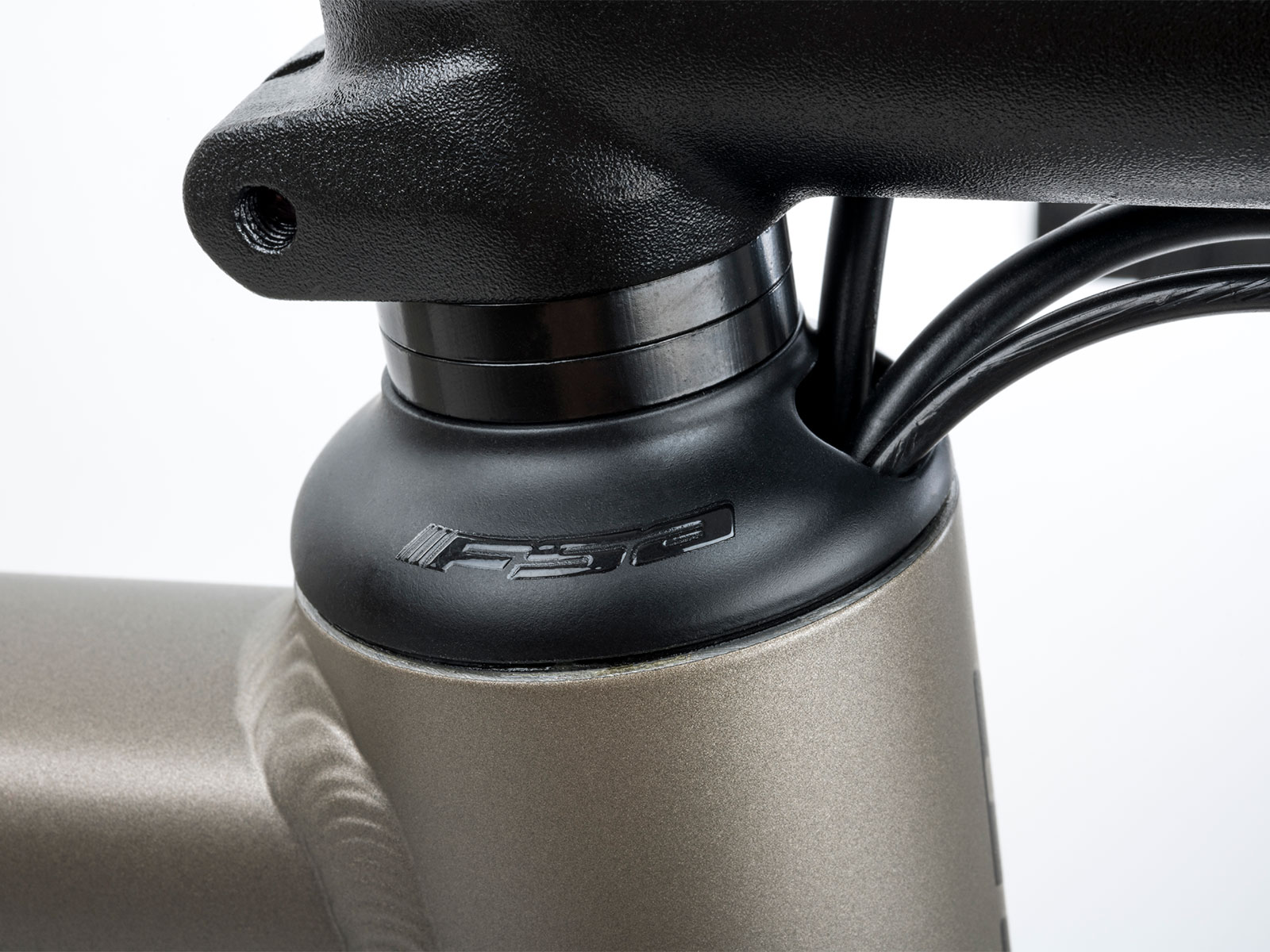

Head parts	FSA No. 69 / 56 / SRS / Center 1,5"

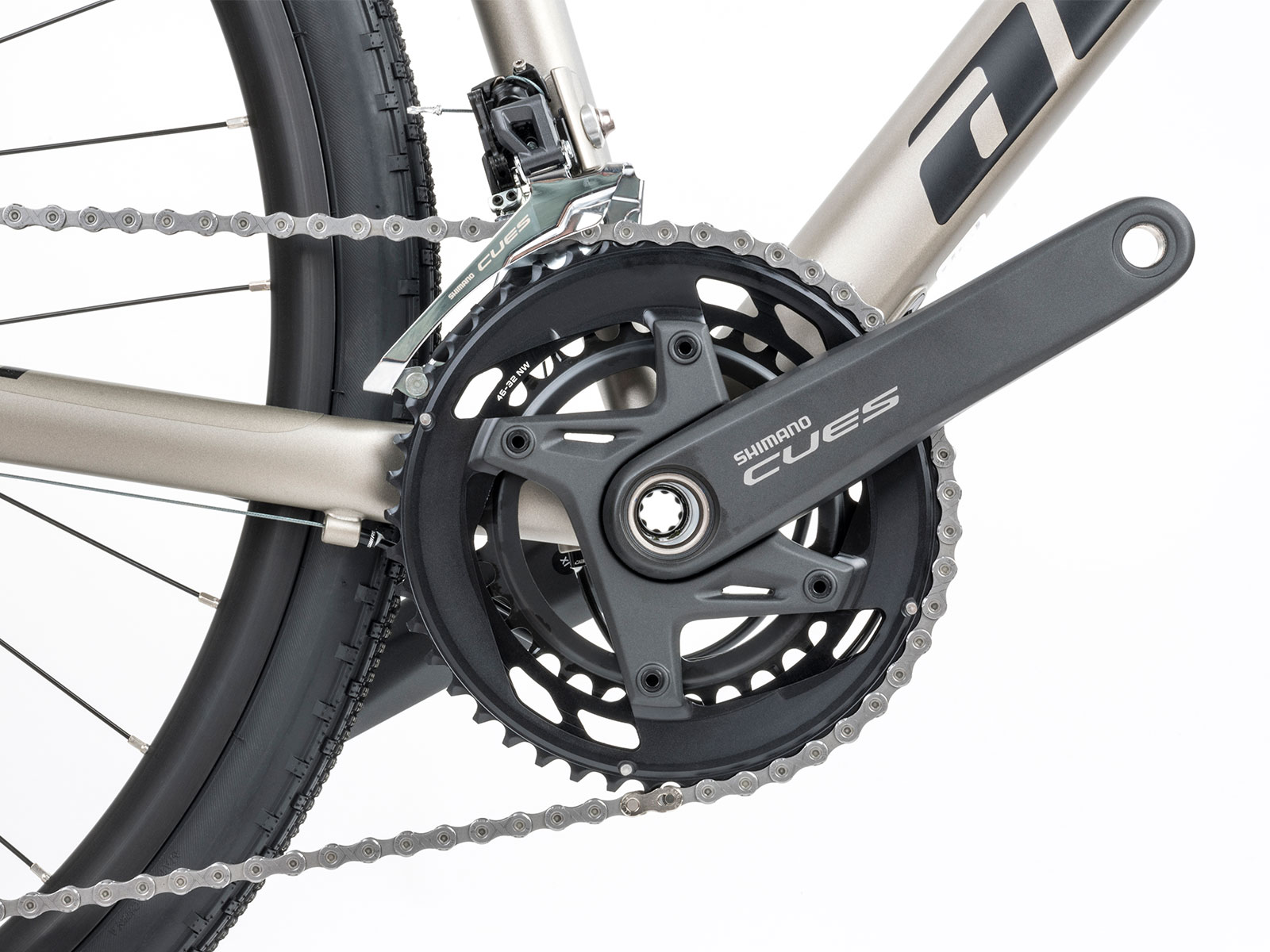

Chain Wheel	SHIMANO Cues 6040-2, 46-32 teeth, 172,5/175 mm cranks
BBParts	SHIMANO BB-RS501, BB unit
Front derailleur	SHIMANO Cues 6030

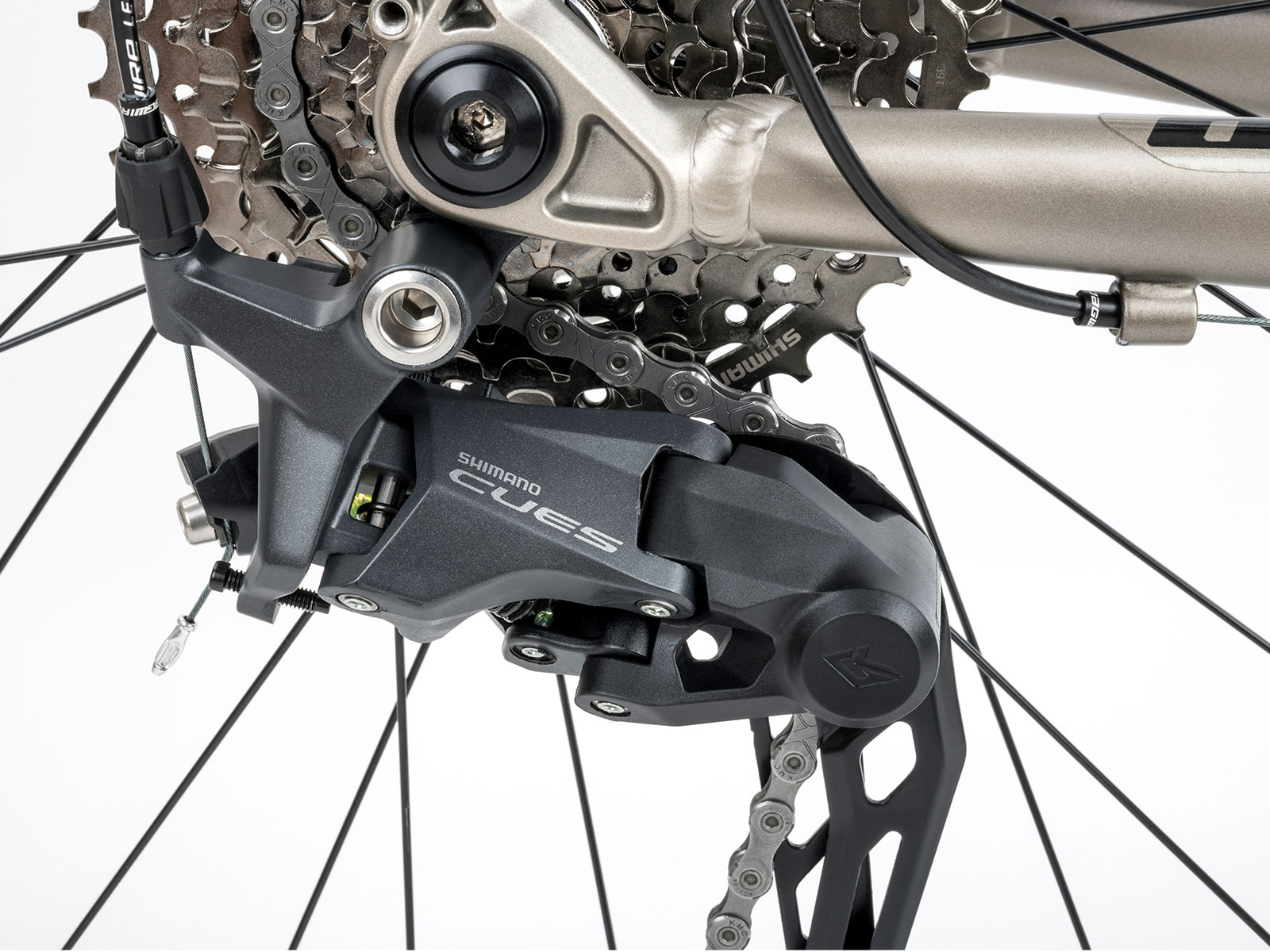

Rear derailleur	SHIMANO Cues 6020

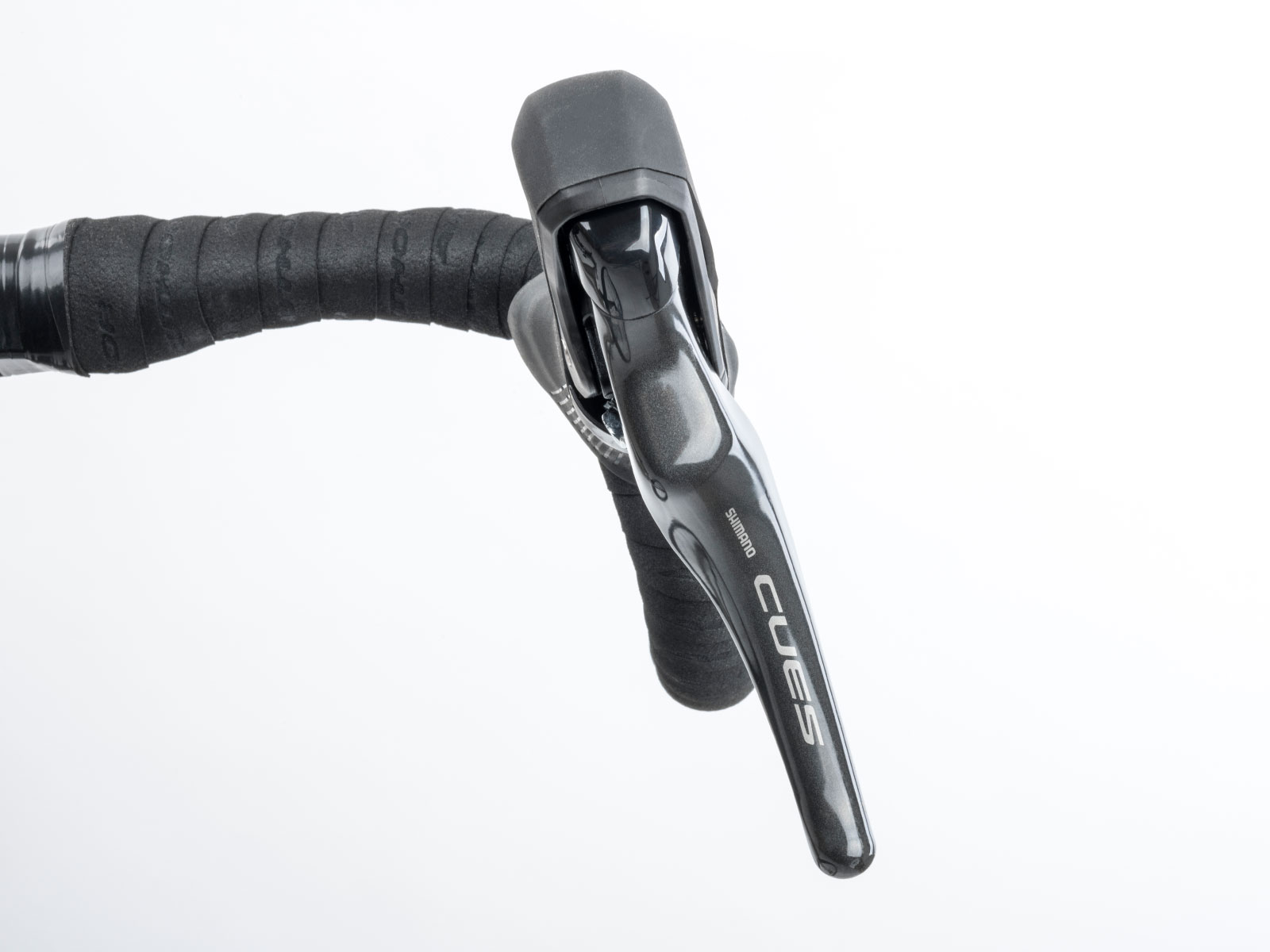

Shifters	SHIMANO Cues 6030 (20)
Free wheel	SHIMANO CS-LG400-10, 11-39 teeth (10)
Chain	KMC XGlide
Hubs	QUANDO Road Disc, 12 x 100 mm thru front axle, 12 x 142 mm thru rear axle, 32 holes

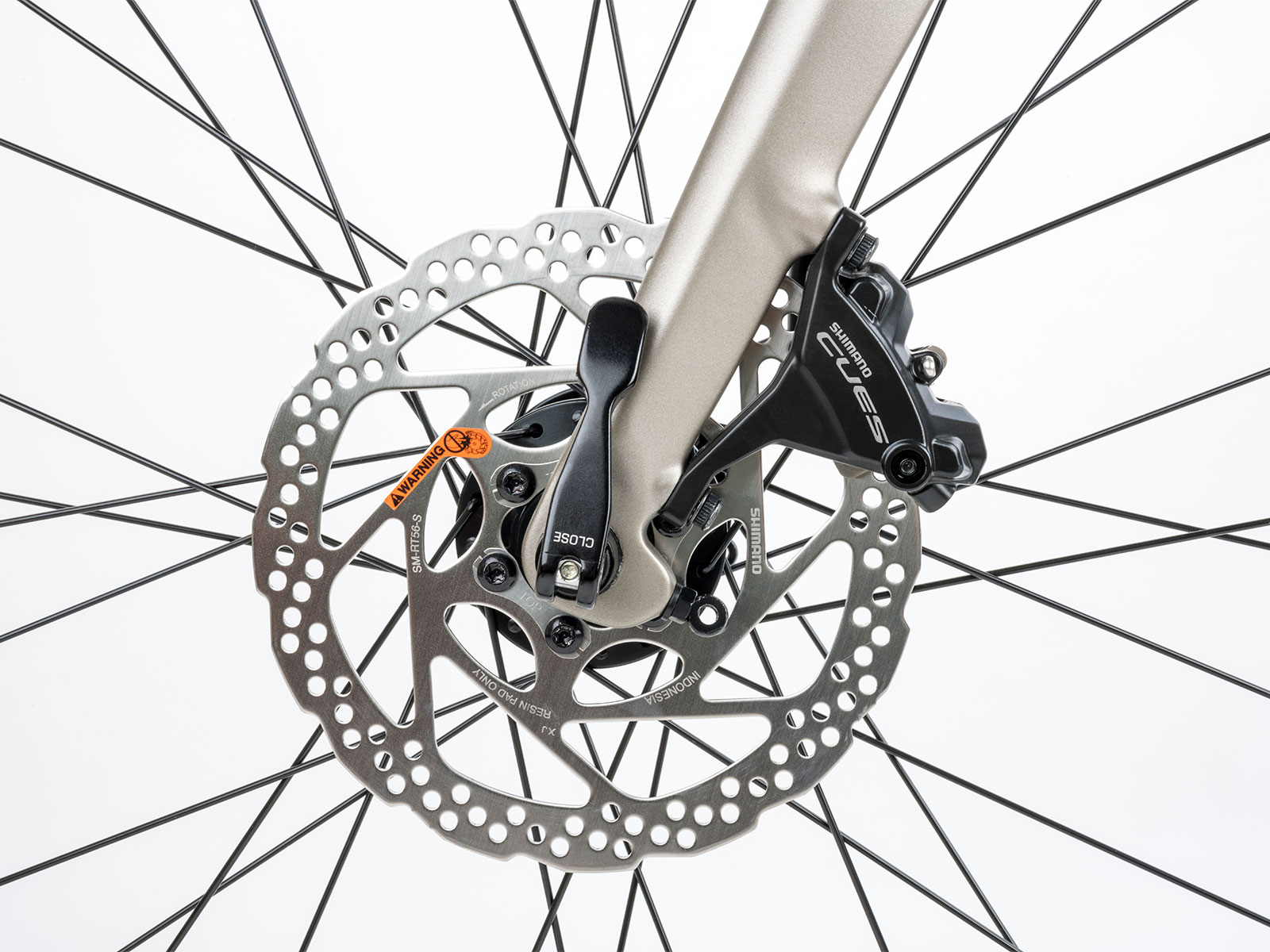

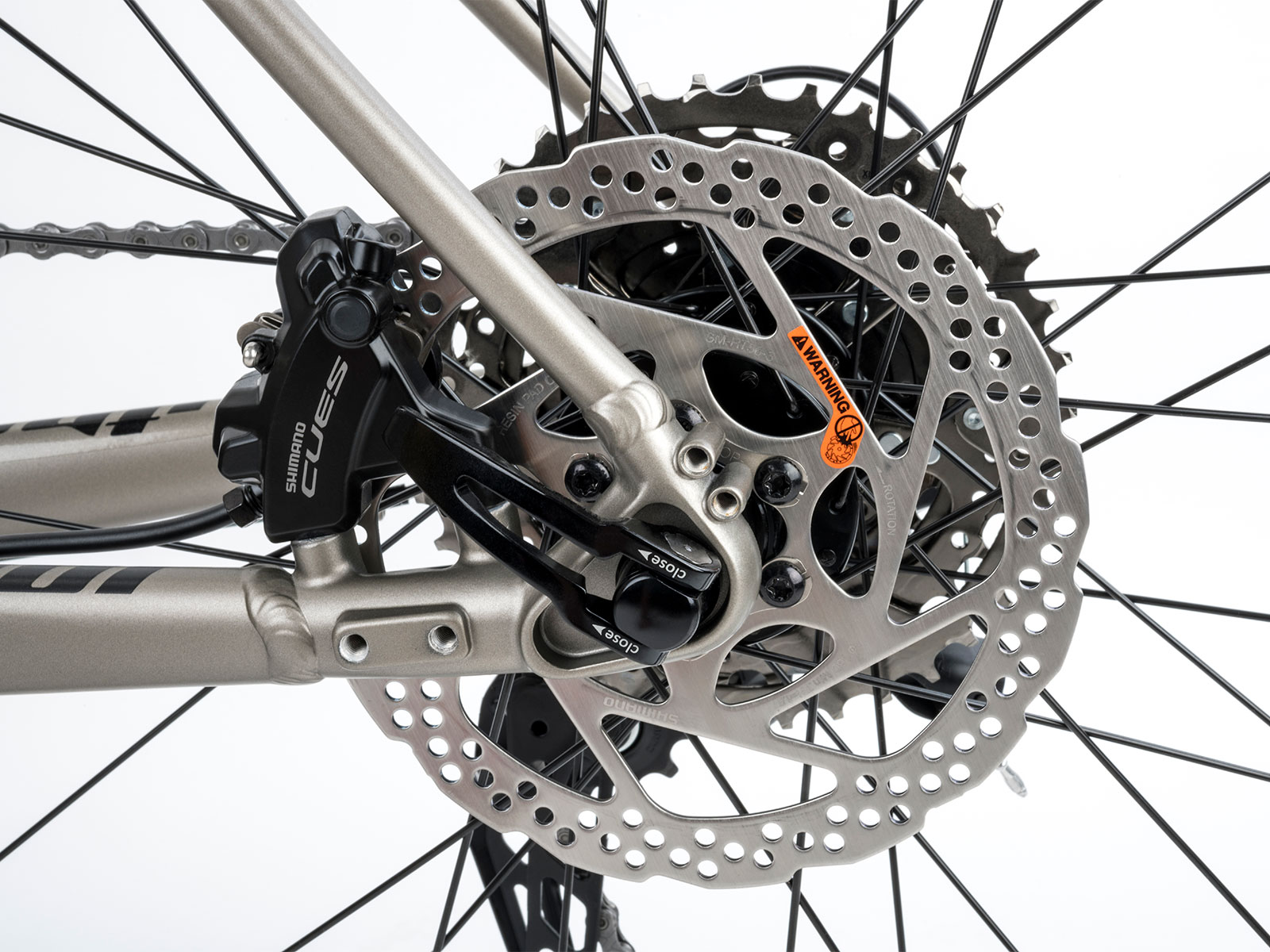

Brakes	SHIMANO Cues 6030, disc hydraulic (160 mm rotors)

Brakes levers	SHIMANO Cues 6030
Rims	AUTHOR Oxygen TRC, 32 holes
Spokes	black stainless steel 2.0 mm

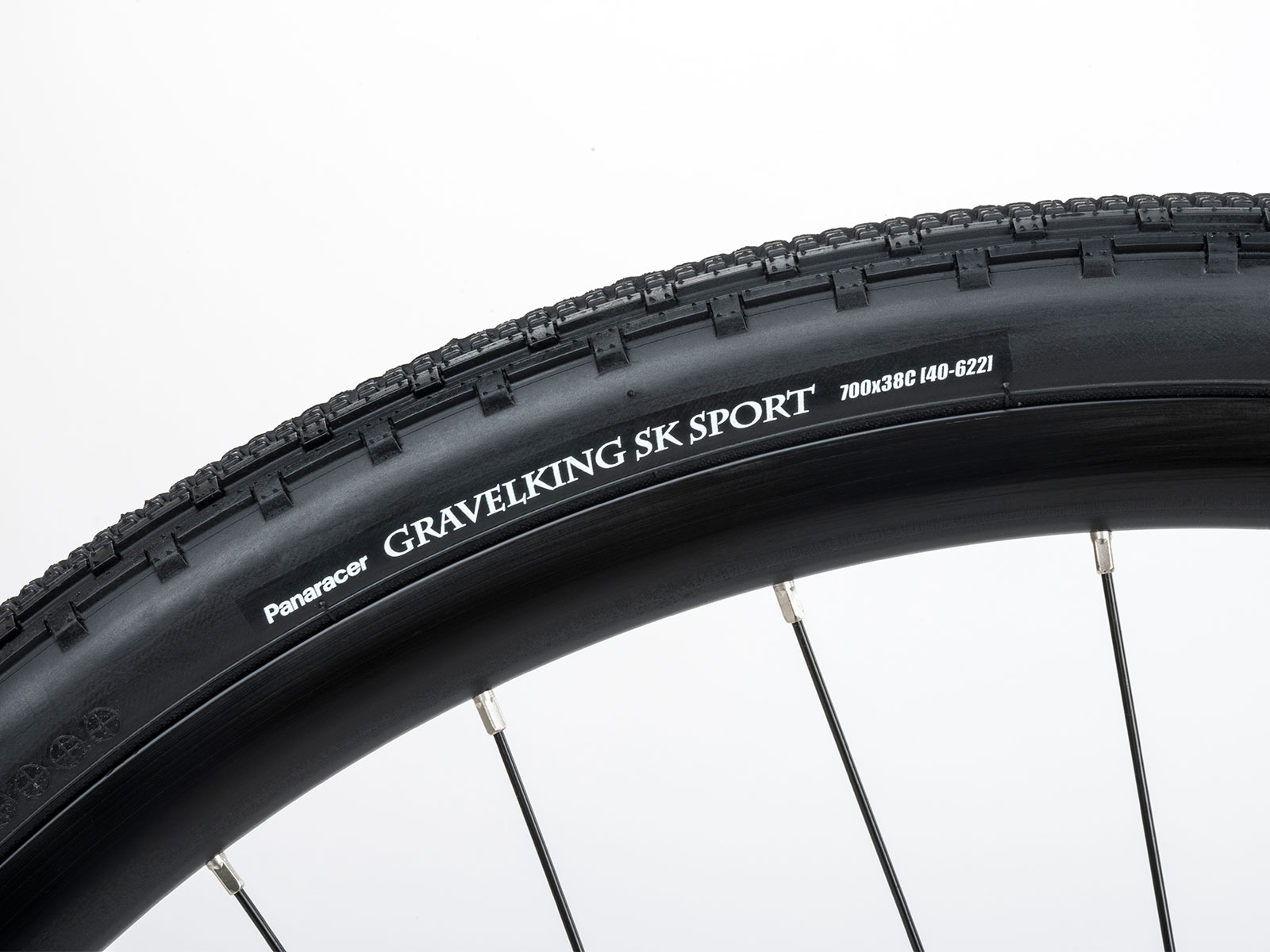

Tires	PANARACER Gravel King SK Sport, 700 x 38c (max. tyre size 45 mm)
Handlebar	PROMAX, 420/440/460 mm
Grips/Bar tapes	AUTHOR suede / gel
Stem	AUTHOR alloy
Seat post	AUTHOR alloy (27.2)

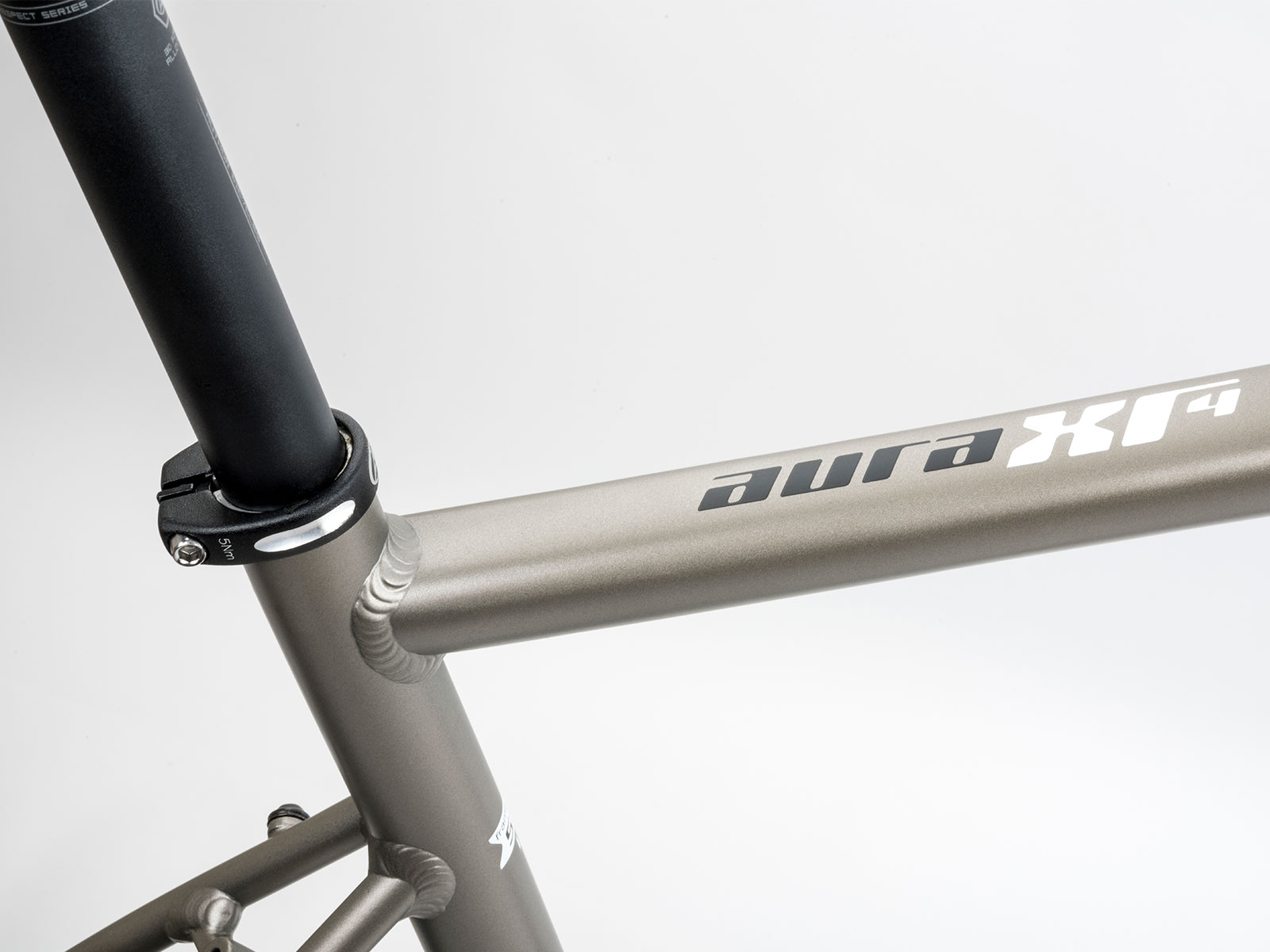

Seat clamp	AUTHOR (31.8)
Saddle	AUTHOR Guru
Speed	20
Weight	10,9 kg / 54 cm

Geometry and sizes

Size	500	520	540	560	580
Min. figure ~~[cm]~~	160	168	176	183	190
Max. figure ~~[cm]~~	170	178	185	193	205
S/T c-t ~~[mm]~~	500	520	540	560	580
S/T c-c ~~[mm]~~	460	480	500	520	540
T/T h ~~[mm]~~	530	550	570	590	610
T/T a ~~[mm]~~	0	0	0	0	0
H/T ~~[mm]~~	135	150	165	180	200
C/S ~~[mm]~~	435	435	435	435	435
W/B ~~[mm]~~	1026	1037	1052	1062	1071
S/T ang. ~~[°]~~	74.5	74	73.5	73	72.5
H/T ang. ~~[°]~~	70.5	71	71	71.5	72
F/L ~~[mm]~~	408	408	408	408	408
B/B drop ~~[mm]~~	70	70	69	68	68
B/B width ~~[mm]~~	68	68	68	68	68
Reach ~~[mm]~~	371	381	392	402	409
Stack ~~[mm]~~	572	588	601	617	638
F/R ~~[mm]~~	45	45	45	45	45
Handlebars ~~[mm]~~	0	0	0	0	0
Stem ~~[mm]~~	0	0	0	0	0
Cranks ~~[mm]~~	0	0	0	0	0

maxmin

~~Choose the height of the character by moving the pointer on the scale.~~

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
T/T h - top tube horizontal, horizontal lenght of the upper tube
T/T a - top tube actual, real lenght of the upper tube
H/T - head tube, head tube lenght
C/S - chain stay, chain brace lenght
W/B - wheel base, wheelbase (front and rear axle lenght)
S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
