You can add bike models to compare on each product card by pressing Add to compare. You can compare a maximum of 4 bike models.
| Image |  |  |  | - |
|---|---|---|---|---|

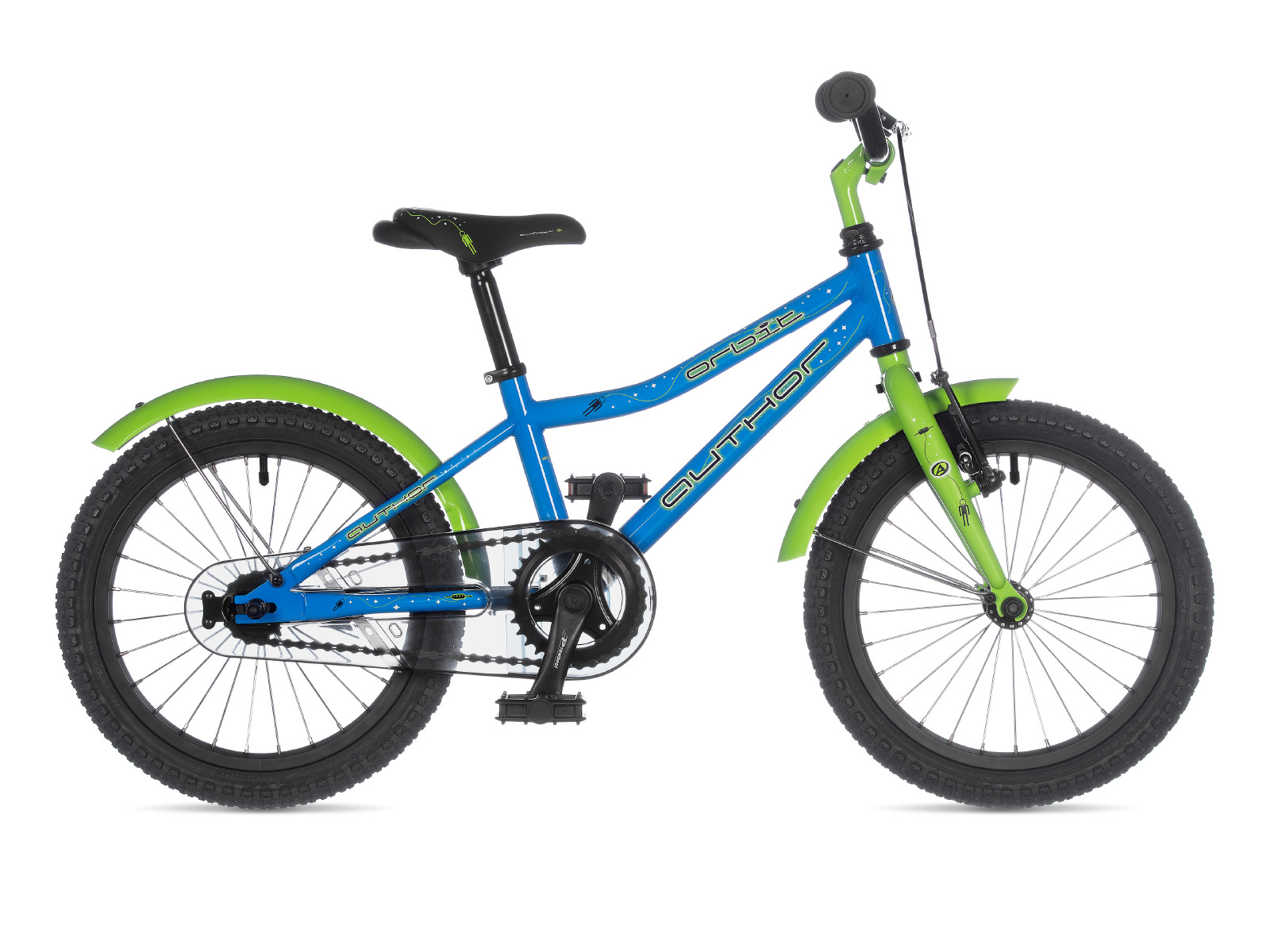

| Product | AUTHOR Instinct ASL 27,5 2019 | AUTHOR Synergy 2021-22 | Orbit 16 2023-24 | - |
| Code | UA#42907501 | UA#42938701 | UA#4294200125 | - |
| Model card | link | link | link | - |
| Size | 14", 16", 18" | 16", 18", 20", 22" | 9" | - |
| Frame | double butted hydroformed alloy 6061 27.5" (ASL) | AUTHOR carbon Toray T700/800 monocoque 29" | hi-ten 16" | - |
| Front fork | RST F1RST 27.5 15 TRL air, remote lock out (100 mm) | RST Vogue Air TRL air, remote lock out, 1.5" tapered (80 mm) | hi-ten | - |
| Head parts | FSA Integrated 1.5" tapered | AUTHOR Integrated 1.5" tapered | VP COMP 1" | - |
| Chain Wheel | SHIMANO 38-24 teeth 170 mm cranks | SHIMANO Deore 48-36-26 teeth 170 / 175 mm cranks | PROWHEEL, 32 teeth, 102 mm cranks | - |
| BBParts | SHIMANO BB-52 BB unit | SHIMANO BB-52 BB unit | VP COMP | - |
| Front derailleur | SHIMANO Deore (34.9) | SHIMANO Deore (34.9) | - | - |
| Rear derailleur | SHIMANO Deore | SHIMANO XT | - | - |
| Shifters | SHIMANO Deore (20) | SHIMANO Deore (30) | - | - |
| Free wheel | SHIMANO HG500-10 11-42 (10) | SHIMANO HG50-10 11-36 (10) | coasterhub 16T | - |
| Chain | KMC X10 | SHIMANO HG54 | KMC Z6 | - |
| Hubs | AUTHOR Xenon 32 holes | AUTHOR Xenon 12 × 142 mm thru rear axle 32 holes | rear coasterhub, 16 holes | - |
| Brakes | SHIMANO BT M400 disc hydraulic (6" rotors) | TEKTRO Gemini disc hydraulic (6" rotors) | TEKTRO V / coasterhub | - |
| Brakes levers | SHIMANO BL MT400 | TEKTRO Gemini | TEKTRO alloy | - |
| Rims | AUTHOR Xenon Pro 27.5 32 holes | AUTHOR Xenon 29 32 holes | alloy, 16 holes | - |
| Spokes | black stainless steel 2.0 mm | black stainless steel 2.0 mm | steel | - |
| Tires | VITTORIA Barzo kevlar 27.5" x 2.25" | PANARACER Gravel King SK aramid 700 × 43c | 16" × 1.75" | - |
| Handlebar | AUTHOR 9° 640 / 660 mm | AUTHOR 15 mm 660 / 680 mm | steel, 60 mm, 500 mm | - |
| Grips | AUTHOR GripLock foam | AUTHOR Microtech ErgoGrip | AUTHOR kratton rubber | - |
| Stem | AUTHOR alloy | AUTHOR alloy | alloy | - |
| Seat post | AUTHOR alloy (31.6) | AUTHOR alloy (27.2) | steel (25.4) | - |
| Seat clamp | AUTHOR (34.9) | AUTHOR (31.8) | alloy (28.6) | - |
| Saddle | AUTHOR Fenix | AUTHOR Navigator CR | AUTHOR | - |
| Speed | 20 | 30 | 1 | - |
| Weight | 12kg / 16" | 11,6 kg / 20" | 9,2 kg / 9" (8,7 kg without mudguards) | - |
| Pedals | - | - | plastic | - |
