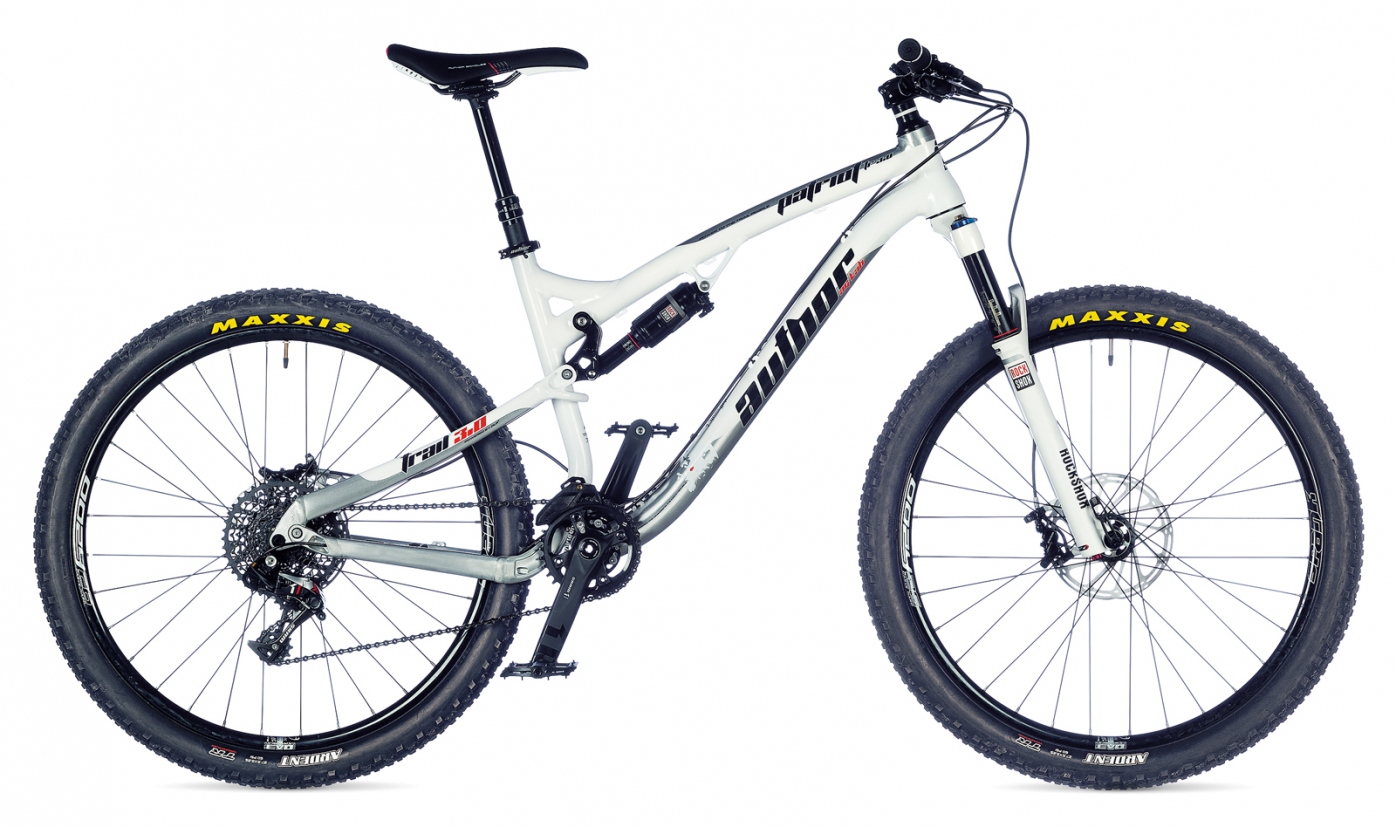

AUTHOR Bicycle Patriot Trail 3.0 2015
AUTHOR Bicycle Patriot Trail 3.0 2015

AUTHOR Patriot Trail 3.0 2015Archivní model 2015

1
Original alloy frame platformAir lock out fork ROCK SHOX Reba RLTRear air shock ROCK SHOX Monarch RT3
SOLD OUT

Full supension bike Author PATRIOT TRAIL 3.0 with double butted alloy frame and air, lock out ROCK SHOX Reba RLT fork.

  • 27.5" alloy suspension frame
  • ROCK SHOX MONARCH RT3 HV DB shocker
  • ROCK SHOX REBA RLT 27 15 SA air fork 120 mm travel
  • Components SRAM X0-11, 11 speed
  • AVID GUIDE R hydraulic disc brakes
  • SPANK OOZY 26 AL EVO wheel set
  • ROCK SHOX REVERB STEALTH adjustable seat post

Technical specification

SizeS, M, L, XL
Framedouble butted alloy 6061 27.5"
Shockerair shock ROCK SHOX Monarch RT3 HV DB 200 / 50 mm (rear travel 120 mm)
Front forkROCK SHOX Reba RLT 27 15 SA air, lock out 15 mm thru axle 1.5" tapered steerer (120 mm)
Head partsPRESTINE Integrated 1.5" tapered
Chain WheelSRAM X1-1000 34 teeth 170 / 175 mm cranks
BBPartsSRAM BB30 PF
Front derailleurE13 chain guide
Rear derailleurSRAM X0
ShiftersSRAM X1 Trigger (11)
Free wheelSRAM XG-1180 10-42 (11)
ChainKMC DLC black
HubsAG Lab Disc 15 mm front thru axle 142 x 12 mm rear thru axle 32 holes
BrakesAVID Guide R disc hydraulic (7" rotors)
Brakes leversAVID Guide R
RimsSPANK Oozy 26 Al Evo 32 holes
Spokesblack stainless steel 2.0 mm butted
TiresMAXXIS Ardent kevlar 27.5" x 2.25"
PedalsHT-PA12A
HandlebarSPANK Oozy Limited Bar 15 mm 740 mm
GripsAG Lab GripLock
StemSPANK Oozy
Seat postROCK SHOX Reverb Stealth remote control adjustable (30.9)
Seat clampAG Lab (34.9)
SaddleAUTHOR Summit CR
Speed11
Weight13,2 kg / M

Geometry and sizes

Size S M L XL
Min. figure [cm] 150 165 175 190
Max. figure [cm] 165 180 190 215
S/T c-t [mm] 381 432 483 533
S/T c-c [mm] 0 0 0 0
T/T h [mm] 580 600 620 640
T/T a [mm] 570 590 610 630
H/T [mm] 110 120 120 130
C/S [mm] 430 430 430 430
W/B [mm] 1140 1160 1180 1200
S/T ang. [°] 73.8 73.8 73.8 73.8
H/T ang. [°] 68 68 68 68
F/L [mm] 510 510 510 510
B/B drop [mm] 15 15 15 15
B/B width [mm] 73 73 73 73
Reach [mm] 0 0 0 0
Stack [mm] 0 0 0 0
F/R [mm] 42 42 42 42
Handlebars [mm] 0 0 0 0
Stem [mm] 0 0 0 0
Cranks [mm] 0 0 0 0
maxmin
215 cm
silueta
Choose the height of the character by moving the pointer on the scale.
AUTHOR Patriot Trail 3.0 2015

The recommended size and stature are just indicative. It is recommended to always consult your choice with the dealer.

  • S/T c-t - seat tube (center-top), length of the seat tube from the middle of BB parts to its peak
  • S/T c-c - seat tube (center-center), length of the seat tube from the middle of BB parts to an axle of the upper tube
  • T/T h - top tube horizontal, horizontal lenght of the upper tube
  • T/T a - top tube actual, real lenght of the upper tube
  • H/T - head tube, head tube lenght
  • C/S - chain stay, chain brace lenght
  • W/B - wheel base, wheelbase (front and rear axle lenght)
  • S/T ang. - seat tube angel, angle between the seat tube axis and an imaginary line connecting the axes of the front and rear wheel
  • H/T ang. - head tube angel, angle between the head tube axis and an imaginary line connecting axes of the front and rear wheels
  • F/L - fork length, fork length from the head parts bottom to the middle of the front wheel
  • B/B drop - bottom bracked drop, lenght between an imaginary line connecting wheels centers and BB parts, measured from BB parts
  • F/R - fork rake, distances between the head tube axis and fork axis measured at center of the front wheel, so-called. off set
