| Image |  | - | - | - |
|---|---|---|---|---|

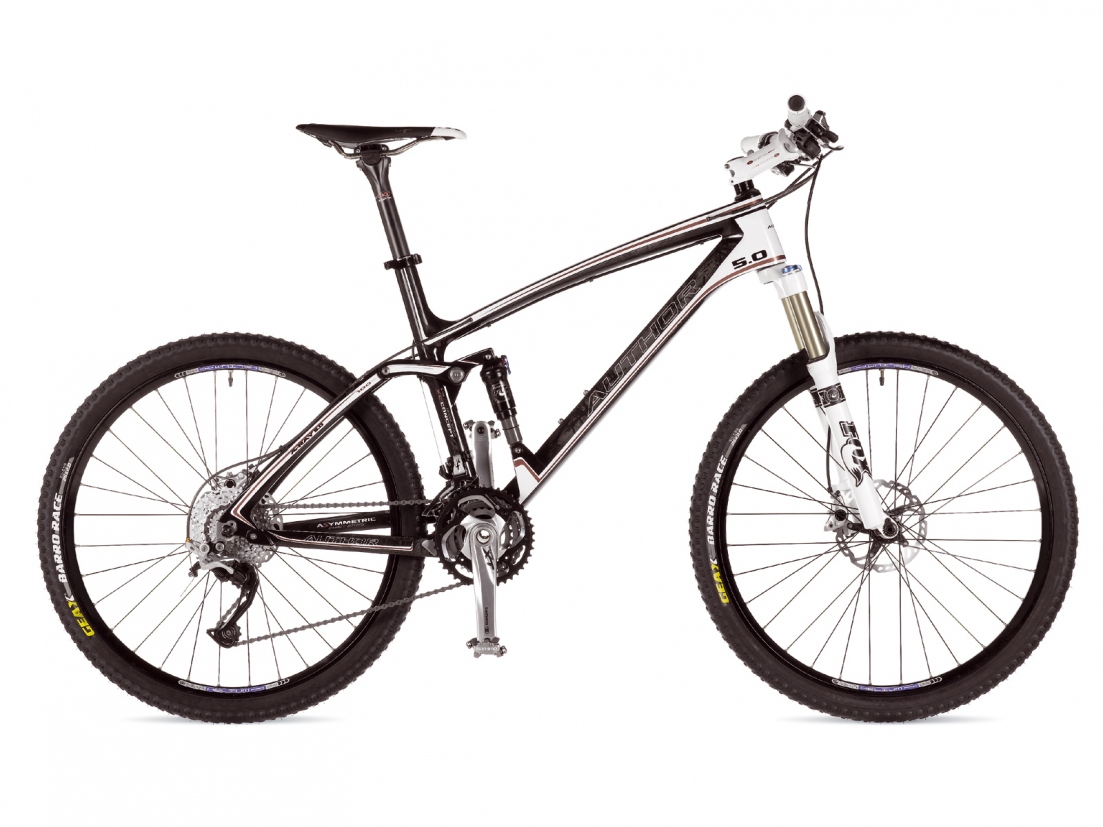

| Product | AUTHOR A-Ray 5.0 2013 | - | - | - |
| Code | UA#42816202 | - | - | - |
| Model card | link | - | - | - |
| Size | 17", 19", 21" | - | - | - |
| Frame | AUTHOR A carbon monocoque, suspension oil-air shocker FOX Float RPL lock out, 165 / 38 mm (rear travel 100 mm) | - | - | - |
| Front fork | FOX 32 Float 100 Fit RL air, lock out 15 mm thru axle 1.5" tapered steerer (100 mm) | - | - | - |
| Head parts | FSA Orbit 1.5B 1.5" tapered | - | - | - |
| Chain Wheel | SHIMANO XT-10 42-32-24 teeth 170 / 175 mm cranks | - | - | - |
| BBParts | SHIMANO XT-10 BB unit | - | - | - |
| Front derailleur | SHIMANO XT (34.9) | - | - | - |
| Rear derailleur | SHIMANO XT | - | - | - |
| Shifters | SHIMANO XT (30) | - | - | - |
| Free wheel | SHIMANO M771-10 11-36 (10) | - | - | - |
| Chain | SHIMANO HG-74 | - | - | - |
| Hubs | SHIMANO XT Disc 15 mm thru axle 32 holes | - | - | - |
| Brakes | SHIMANO XT disc hydraulic (6" rotors) | - | - | - |
| Brakes levers | SHIMANO XT | - | - | - |
| Rims | AUTHOR Helium Pro 32 holes | - | - | - |
| Spokes | black stainless steel 2.0 mm triple butted | - | - | - |
| Tires | GEAX Barro Race Kevlar 26" x 2.00" | - | - | - |
| Pedals | SHIMANO M540 clipless | - | - | - |
| Handlebar | EASTON EC90 carbon 20 mm 635 mm | - | - | - |
| Grips | AUTHOR GripLock | - | - | - |
| Stem | EASTON EA90 | - | - | - |
| Seat post | EASTON EC70 Zero carbon (31.6) | - | - | - |
| Seat clamp | AUTHOR (34.9) | - | - | - |
| Saddle | FIZIK Tundra II k:ium | - | - | - |
| Speed | 30 | - | - | - |
| Weight | 11,1 Kg / 19" | - | - | - |
